Tanaka TBC-500N - Engine 2

Part No. tbctbc500nengine2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TBC-500N - Engine 2

Tanaka TBC-500N - Engine 2

Description

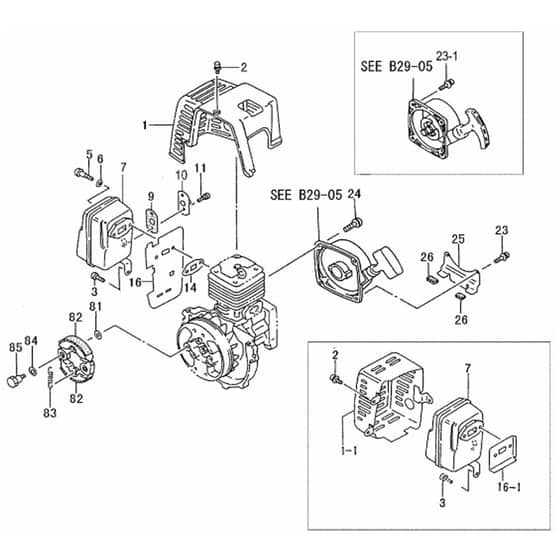

Tanaka TBC-500N Brushcutter - Engine 2 Parts Diagram

Ref.		Img.	Part No.	Details
	1		TK6692777 Available to backorder	Muffler Protector		£18.85 £15.71
	2		TK6695383 In stock	Screw 5X12.Ps		£1.78 £1.48
	3		TK6695321 Available to backorder	Screw 5X12.P		£1.78 £1.48
	4		TK6684918 Available to backorder	Washer 5		£1.78 £1.48
	5		TK6695088 Available to backorder	Hex. Hole Button Screw 6X65		£3.58 £2.98
	6		TK6697455 In stock	Washer 6		£0.35 £0.29
	7		TK6692465 Available to backorder	Muffler Set Spare		£39.26 £32.72
	9		TK6692883 Available to backorder	Muffler Special Gasket		£1.78 £1.48
	10		TK6692648 Available to backorder	Tail Pipe Set Spare		£5.38 £4.48
	14		TK6692741 Available to backorder	Muffler Gasket		£1.78 £1.48
	16		TK6687242 Available to backorder	Heat Shield		£3.58 £2.98
	23		TK6695389 Available to backorder	Screw 5X18.Ps		£1.78 £1.48
	24		TK6695395 Available to backorder	Screw 5X25Ps		£1.78 £1.48
	25		TK6692205 Available to backorder	Tank Bracket		£7.51 £6.26
	26		TK6697452 Available to backorder	Fuel Tank Cushion Rubber		£0.89 £0.74
	81		TK6689645 Available to backorder	Clutch Washer B		£1.78 £1.48
	82		TK6688615 Available to backorder	Clutch Arm		£22.20 £18.50
	83		TK6689429 Available to backorder	Clutch Spring		£5.38 £4.48
	84		TK6695203 Available to backorder	Wave Washer 10		£1.78 £1.48
	85		TK6689628 Available to backorder	Clutch Step Bolt		£3.58 £2.98

Description

Tanaka TBC-500N Brushcutter - Engine 2 Parts Diagram
