Tanaka TBC-500N - Cylinderpistoncrank Shaft

Tanaka TBC-500N - Cylinderpistoncrank Shaft

Part No. tbctbc500ncylinderpisncrankshaft-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TBC-500N - Cylinderpistoncrank Shaft

Tanaka TBC-500N - Cylinderpistoncrank Shaft

Description

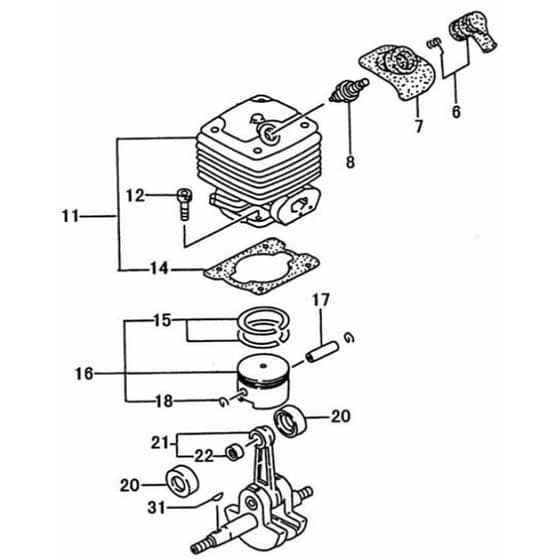

Tanaka TBC-500N Brushcutter - Cylinderpistoncrank Shaft Parts Diagram

Ref.		Img.	Part No.	Details
	6		TK6687479 Available to backorder	Spark Plug Cap Ass'Y		£3.58 £2.98
	7		TK6688336 Available to backorder	Spark Plug Rubber Cover		£5.38 £4.48
	8		2133 In stock	Spark Plug Bpmr6A		£3.42 £2.85
	11		TK6685470 Available to backorder	Cylinder Set		£111.84 £93.20
	12		TK6684586 Available to backorder	Hex. Hole Bolt 5X18.S		£1.78 £1.48
	14		TK6685738 Available to backorder	Cylinder Gasket		£1.78 £1.48
	15		TK6686126 Available to backorder	Piston Ring		£12.52 £10.43
	16		TK6685887 Available to backorder	Piston Set		£33.91 £28.26
	17		TK6686019 Available to backorder	Piston Pin		£3.58 £2.98
	18		TK6686026 Available to backorder	Piston Pin Circlip		£1.78 £1.48
	20		TK6685993 Available to backorder	Piston Pin Collar		£8.59 £7.16
	21		TK6686190 Available to backorder	Crank Shaft Comp.		£124.20 £103.50
	31		TK6686457 Available to backorder	Wood-Ruff Key 3X13X5		£1.78 £1.48

Description

Tanaka TBC-500N Brushcutter - Cylinderpistoncrank Shaft Parts Diagram
