Tanaka TBC-500 - Cylinder Piston Crankshaft

Tanaka TBC-500 - Cylinder Piston Crankshaft

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TBC-500 - Cylinder Piston Crankshaft

Tanaka TBC-500 - Cylinder Piston Crankshaft

Description

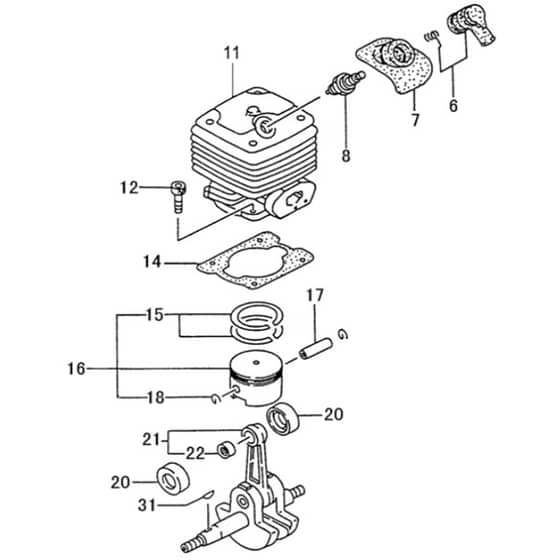

Tanaka TBC-500 Brushcutter - Cylinder Piston Crankshaft Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	6		TK6687479 Available to backorder	Spark Plug Cap Ass'Y		£3.04 £2.53
	7		TK6688336 Available to backorder	Spark Plug Rubber Cover		£4.55 £3.79
	8		2133 In stock	Spark Plug Bpmr6A		£3.22 £2.68
	11		TK6695833 Available to backorder	Cylinder		£94.68 £78.90
	12		TK6684586 Available to backorder	Hex. Hole Bolt 5X18.S		£1.73 £1.44
	14		TK6685737 Available to backorder	Cylinder Gasket 1 - M2441		£1.40 £1.17
	14		TK6685738 Available to backorder	Cylinder Gasket 1 M244133		£1.70 £1.42
	15		TK6686126 Available to backorder	Piston Ring		£10.49 £8.74
	16		TK6685936 Available to backorder	Piston		£21.96 £18.30
	17		TK6686019 Available to backorder	Piston Pin		£3.04 £2.53
	18		TK6686026 Available to backorder	Piston Pin Circlip		£1.70 £1.42
	20		TK6685993 Available to backorder	Piston Pin Collar		£7.20 £6.00
	21		TK6686190 Available to backorder	Crank Shaft Comp.		£119.00 £99.17
	31		TK6686457 Available to backorder	Wood-Ruff Key 3X13X5		£1.70 £1.42

Description

Tanaka TBC-500 Brushcutter - Cylinder Piston Crankshaft Parts Diagram
