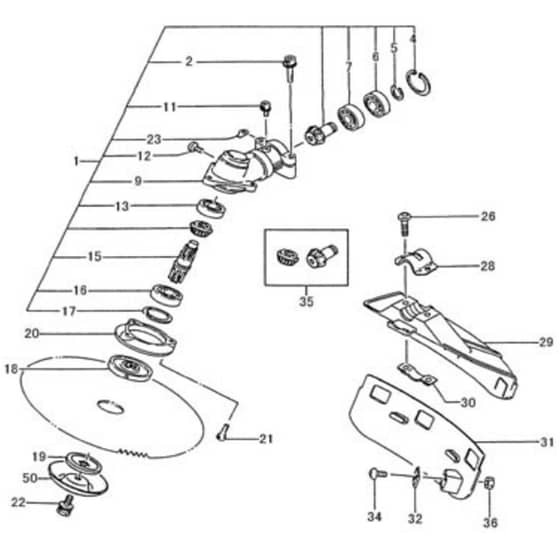

Tanaka TBC-430PF Brushcutter - Gear Case Parts Diagram

	Part No.	Details
1	TK6688706 Available to backorder	Gear Case Ass'Y Vermilion	£141.12 £117.60
2	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.78 £1.48
4	TK6684741 Available to backorder	Stop Ring C-28 Inner	£1.78 £1.48
5	TK6697442 Available to backorder	Stop Ring C-12 Outer	£0.35 £0.29
6	TK6695532 Available to backorder	Ball Bearing #6001Z 28Mm.Od	£10.63 £8.86
7	TK6684608 Available to backorder	Ball Bearing #6001 28Mm.Od	£7.16 £5.97
9	TK6688703 In stock	Gear Case Vermilion	£49.99 £41.66
11	TK6684667 Available to backorder	Hex. Hole Bolt 5X12S	£1.78 £1.48
12	TK6695437 Available to backorder	Plus Head Bolt 8X10	£1.78 £1.48
13	TK6695524 Available to backorder	Ball Bearing #6000 26Mm.Od	£8.98 £7.48
15	TK6688931 Available to backorder	Gear Shaft	£33.56 £27.97
16	TK6695564 Available to backorder	Ball Bearing #6203D 40Mm.Od	£13.76 £11.47
17	TK6695298 Available to backorder	Stop Ring C-40 Inner	£1.78 £1.48
18	TK6689022 Available to backorder	Cutter Holder	£27.11 £22.59
19	TK6689044 In stock	Cutter Holder Cap	£5.38 £4.48
20	TK6688982 Available to backorder	Protection Cover A Comp.	£7.16 £5.97
21	TK6695418 Available to backorder	Screw 5X16.Ws	£1.78 £1.48
22	TK6689062 In stock	Fixing Bolt L.H.	£3.58 £2.98
23	TK6689157 Available to backorder	Gear Case Washer	£1.78 £1.48
26	TK6697451 Available to backorder	Hex. Hole Button Screw 6X25S	£0.97 £0.81
29	TK6690271 Available to backorder	Safety Cover Ce	£22.46 £18.72
30	TK6684748 Available to backorder	Safety Cover Holder	£3.48 £2.90
31	TK6690375 Available to backorder	Cover Guard	£12.64 £10.53
32	TK6693386 Available to backorder	Knife	£7.16 £5.97
35	TK6688866 Available to backorder	Gear-Pinion Set Spare	£46.37 £38.64
36	TK6684965 Available to backorder	Hex. Nut 5	£1.54 £1.28
50	TK6688990 Available to backorder	Protection Cover B	£3.58 £2.98
