Tanaka TBC-4200DX - 20052015 - Gear Case

Description

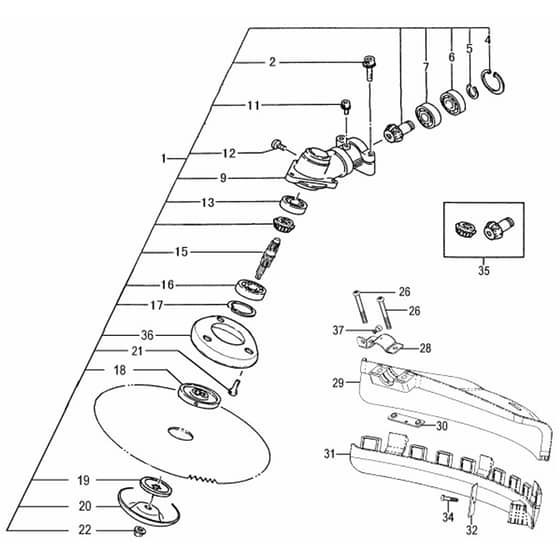

Tanaka TBC-4200DX Brushcutter - Gear Case Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.72 £1.43
4	TK6684741 Available to backorder	Stop Ring C-28 Inner	£1.73 £1.44
5	TK6697442 Available to backorder	Stop Ring C-12 Outer	£0.41 £0.34
6	TK6695532 Available to backorder	Ball Bearing #6001Z 28Mm.Od	£10.28 £8.57
7	TK6684608 Available to backorder	Ball Bearing #6001 28Mm.Od	£6.92 £5.77
9	TK6688798 Available to backorder	Gear Case	£39.04 £32.53
11	TK6695384 Available to backorder	Screw 5X14.Ps	£1.73 £1.44
12	TK6694979 Available to backorder	Bolt 6X8	£1.73 £1.44
13	TK6695524 Available to backorder	Ball Bearing #6000 26Mm.Od	£8.68 £7.23
15	TK6688943 Available to backorder	Gear Shaft L-M10X1.25	£16.82 £14.02
16	TK6695296 Available to backorder	Stop Ring C-35 Inner	£1.73 £1.44
17	TK6696297 Available to backorder	Ball Bearing #6202Dd 35Mm.Od	£11.78 £9.82
18	TK6689029 Available to backorder	Cutter Holder	£14.39 £11.99
19	TK6689051 Available to backorder	Cutter Holder Cap	£4.55 £3.79
20	TK6688995 Available to backorder	Protection Cover B	£5.20 £4.33
21	TK6684967 Available to backorder	Screw 5X16.Ps	£1.73 £1.44
22	TK6689067 Available to backorder	Fixing Nut L-M10X1	£13.88 £11.57
26	TK6695518 Available to backorder	Hex.Hole Button Screw 6X30S	£1.80 £1.50
28	TK6690313 Available to backorder	Cover Bracket	£3.46 £2.88
29	TK6690265 Available to backorder	Safety Cover	£21.72 £18.10
30	TK6690342 Available to backorder	Safety Cover Holder	£3.46 £2.88
31	TK6690374 Available to backorder	Cover Guard	£10.08 £8.40
32	TK6693386 Available to backorder	Knife	£6.92 £5.77
34	TK6684753 Available to backorder	Tapping Screw	£1.72 £1.43
35	TK6688879 Available to backorder	Gear Pinion Set Spare	£45.08 £37.57
36	TK6697604 Available to backorder	Gear Case Cover	£10.49 £8.74
