Tanaka TBC-4200DB-D - W084271 - Gear Case Guard

Description

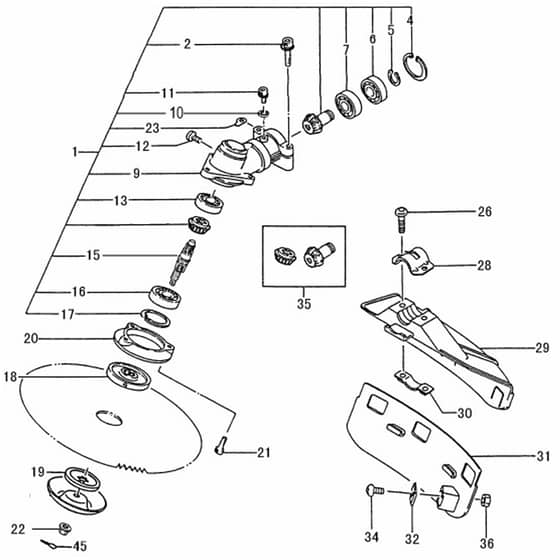

Tanaka TBC-4200DB-D Brushcutter - Gear Case Guard Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	TK6688801 Available to backorder	Gear Case Ass'Y 30 Dia	£146.28 £121.90
2	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.72 £1.43
4	TK6684741 Available to backorder	Stop Ring C-28 Inner	£1.73 £1.44
5	TK6697442 Available to backorder	Stop Ring C-12 Outer	£0.41 £0.34
6	TK6695532 Available to backorder	Ball Bearing #6001Z 2	£10.28 £8.57
7	TK6684608 Available to backorder	Ball Bearing 6001 C3	£6.92 £5.77
9	TK6688703 Available to backorder	Gearcase Silver	£48.32 £40.27
10	TK6684834 Available to backorder	S.Washer 5 1 A159501	£1.73 £1.44
11	TK6684667 Available to backorder	Hex. Hole Bolt 5X12S 1 - A1595	£1.73 £1.44
11	TK6684829 Available to backorder	Hex. Hole Bolt 5X12 1 A159501	£1.73 £1.44
12	TK6695437 Available to backorder	Plus Head Bolt 8X10	£1.73 £1.44
13	TK6695524 Available to backorder	Ball Bearing #6000 2	£8.68 £7.23
15	TK6688942 Available to backorder	Gear Shaft 6X11X14	£33.08 £27.57
16	TK6695564 Available to backorder	Ball Bearing #6203D 40M	£12.98 £10.82
17	TK6695298 Available to backorder	Stop Ring C-40 Inner	£1.73 £1.44
18	TK6689022 Available to backorder	Cutter Holder	£26.21 £21.84
19	TK6689052 Available to backorder	Cutter Holder Cap 6X	£6.02 £5.02
20	TK6688982 Available to backorder	Protection Cover A	£6.92 £5.77
21	TK6695418 Available to backorder	Screw 5X16.Ws	£1.73 £1.44
22	TK6689072 Available to backorder	Cutter Fixing Nut L.H	£3.46 £2.88
23	TK6689157 Available to backorder	Gear Case Washer	£1.70 £1.42
26	TK6697451 Available to backorder	Hex. Hole Button Sc	£1.73 £1.44
29	TK6690229 Available to backorder	Safety Cover Ce	£27.17 £22.64
30	TK6684748 Available to backorder	Safety Cover Holder	£3.90 £3.25
31	TK6690372 In stock	Cover Guard	£14.78 £12.32
32	TK6693386 Available to backorder	Knife	£6.92 £5.77
35	TK6688866 Available to backorder	Gear-Pinion Set Spare	£47.12 £39.27
36	TK6684965 Available to backorder	Hex. Nut 5	£1.39 £1.16
45	TK6689168 Available to backorder	Split Pin Set(10 Pcs.P	£1.70 £1.42
