Tanaka TBC-355SDH - N212160 - Gear Case Guard

Name: Tanaka TBC-355SDH - N212160 - Gear Case Guard
SKU: tbctbc355sdhn212160gearcaseguard-group
Price: 0.29 GBP
Availability: InStock

Part No. tbctbc355sdhn212160gearcaseguard-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka TBC-355SDH - N212160 - Gear Case Guard

Description

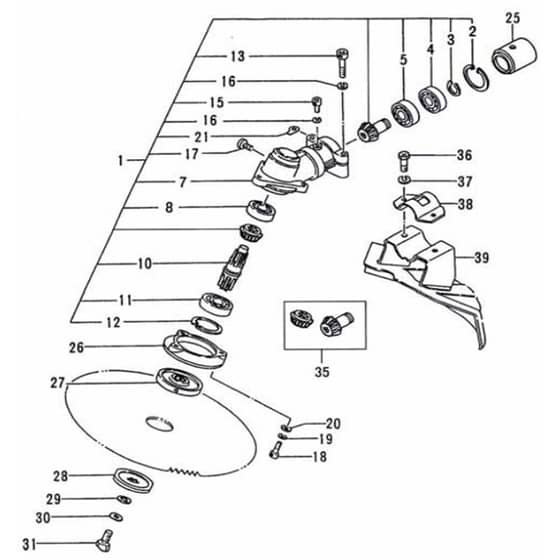

Tanaka TBC-355SDH Brushcutter - Gear Case Guard Parts Diagram

	Part No.	Details
2	TK6684741 Available to backorder	Stop Ring C-28 Inner	£1.78 £1.48
3	TK6697442 Available to backorder	Stop Ring C-12 Outer	£0.35 £0.29
4	TK6695531 Available to backorder	Ball Bearing 6001Zz 28Mm.Od	£11.42 £9.52
5	TK6684608 Available to backorder	Ball Bearing #6001 28Mm.Od	£7.16 £5.97
8	TK6695524 Available to backorder	Ball Bearing #6000 26Mm.Od	£8.98 £7.48
10	TK6688930 Available to backorder	Gear Shaft	£59.38 £49.48
11	TK6695564 Available to backorder	Ball Bearing #6203D 40Mm.Od	£13.76 £11.47
12	TK6695298 Available to backorder	Stop Ring C-40 Inner	£1.78 £1.48
13	TK6695051 Available to backorder	Hex. Hole Bolt 5X25	£1.78 £1.48
15	TK6684829 Available to backorder	Hex. Hole Bolt 5X12	£1.78 £1.48
16	TK6684834 Available to backorder	S.Washer 5	£1.78 £1.48
17	TK6694963 Available to backorder	Truss Head Screw 8X10	£1.78 £1.48
18	TK6695045 Available to backorder	Hex. Hole Bolt 5X15	£1.78 £1.48
20	TK6684661 Available to backorder	Washer 5	£1.78 £1.48
21	TK324.37100.200 Available to backorder	Gear Case Washer 2 - K2317	£1.03 £0.86
21	TK6689157 Available to backorder	Gear Case Washer 2 K231731	£1.78 £1.48
25	TK320.33689.21 Available to backorder	Spacer	£4.32 £3.60
27	TK6689022 Available to backorder	Cutter Holder	£27.11 £22.59
28	TK6689044 In stock	Cutter Holder Cap	£5.38 £4.48
29	TK6684611 Available to backorder	Washer 8	£1.78 £1.48
30	TK6695238 Available to backorder	Toothed Lock Washer 8 L.H	£1.78 £1.48
31	TK6689062 In stock	Cutter Fixing Bolt.L.H.T.	£3.58 £2.98
35	TK6688866 Available to backorder	Gear-Pinion Set Spare	£46.37 £38.64
36	TK6695079 Available to backorder	Hex Hole Button Screw 6X15	£1.78 £1.48
37	TK6684826 Available to backorder	S.Washer 6	£1.78 £1.48
38	TK6690293 Available to backorder	Cover Bracket 26 Dia.	£5.77 £4.81
39	TK6690224 Available to backorder	Safety Guard Comp. Metal	£22.46 £18.72
