Tanaka TBC-340PFD - Operation Pipe

Name: Tanaka TBC-340PFD - Operation Pipe
SKU: tbctbc340pfdoperationpipe-group
Price: 1.42 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

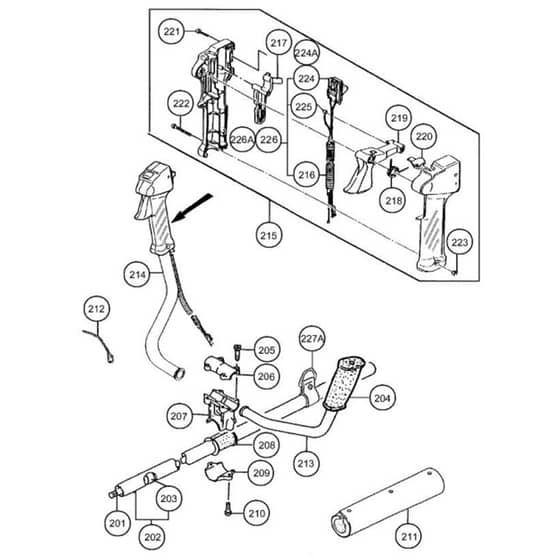

Tanaka TBC-340PFD Brushcutter - Operation Pipe Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
201	TK6689478 Available to backorder	6689478 Drive Shaft 1533L	£22.25 £18.54
202	TK6689407 Available to backorder	6689407 Draive Shaft Pipe Comp.	£51.14 £42.62
204	TK6684708 Available to backorder	6684708 Handle Grip	£5.20 £4.33
205	TK6684709 Available to backorder	6684709 Hex. Hole Bolt M5X25.S	£1.72 £1.43
206	TK6684710 Available to backorder	6684710 Handle Bracket A	£9.35 £7.79
207	TK6684711 Available to backorder	6684711 Handle Bracket B 1 For Eu207 507-37850-20 6691158 Handle Bracket 1 For Usa208	£13.78 £11.48
209	TK6684713 Available to backorder	6684713 Handle Bracket C 1 For Eu209 508-37589-20 6691174 Handle Bracket C 26 Dia. 1	£8.72 £7.27
212	TK6684715 Available to backorder	6684715 Clamp B.	£1.70 £1.42
213	TK6684716 Available to backorder	6696093 Left Handle	£24.82 £20.68

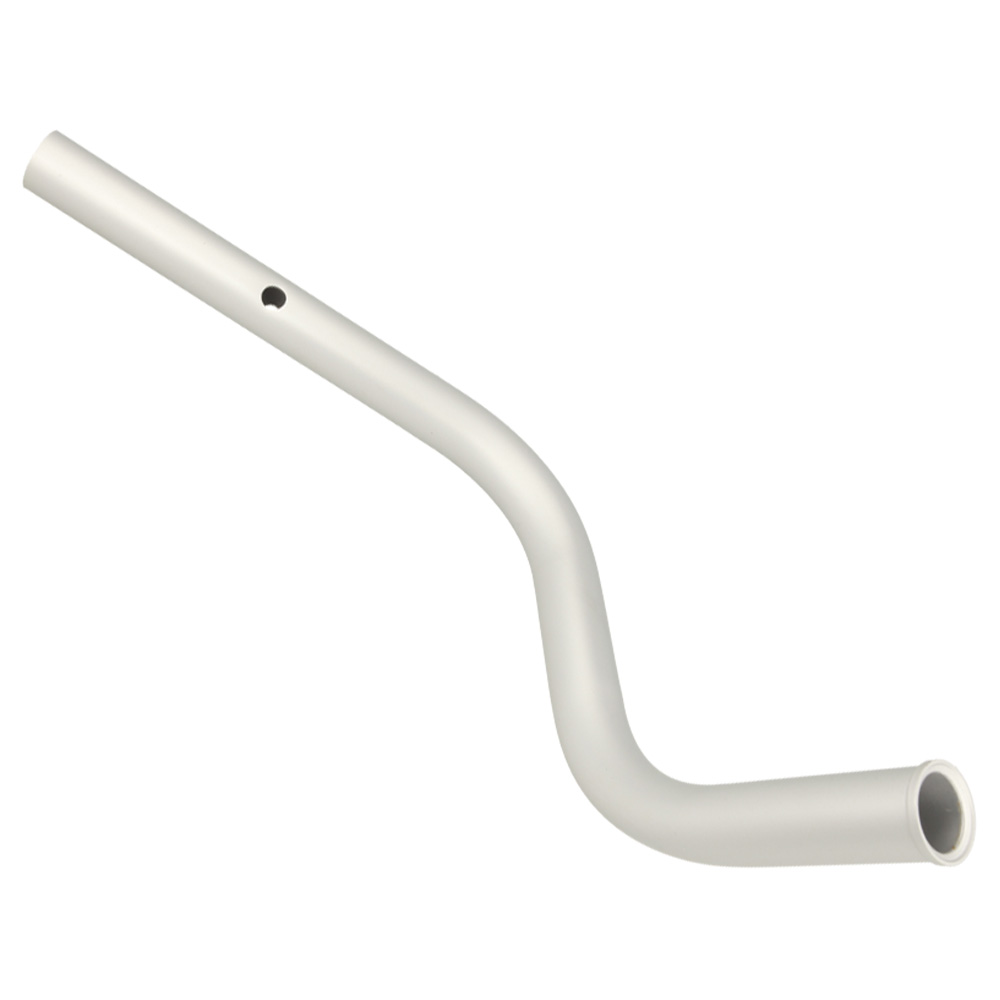

214	TK6691080 Available to backorder	6691080 Right Handle	£18.22 £15.18
216	TK6687546 Available to backorder	6687546 Protection Tube	£3.47 £2.89
217	TK6684721 Available to backorder	6684721 Trigger Lock Out	£5.20 £4.33
218	TK6684722 Available to backorder	6684722 Return Spring	£1.73 £1.44
219	TK6684723 In stock	6684723 Throttle Lever	£8.30 £6.92
220	TK6684724 Available to backorder	6684724 Blind Plug 1 - C2074	£1.70 £1.42
221	TK6684725 Available to backorder	6684725 Screw M4X20 (Black)	£1.73 £1.44
222	TK6684726 Available to backorder	6684726 Screw 5X30 (Black)	£1.73 £1.44
223	TK6684727 Available to backorder	6684727 Contal Nut 5	£1.73 £1.44
224	TK6687460 Available to backorder	6687460 Stop Switch 1 - C2704	£18.95 £15.79
226	TK6693979 Available to backorder	6693979 Throttle Wire Comp. 1 - C2704	£48.32 £40.27
