Tanaka TBC-340PFD - Crankcase

Description

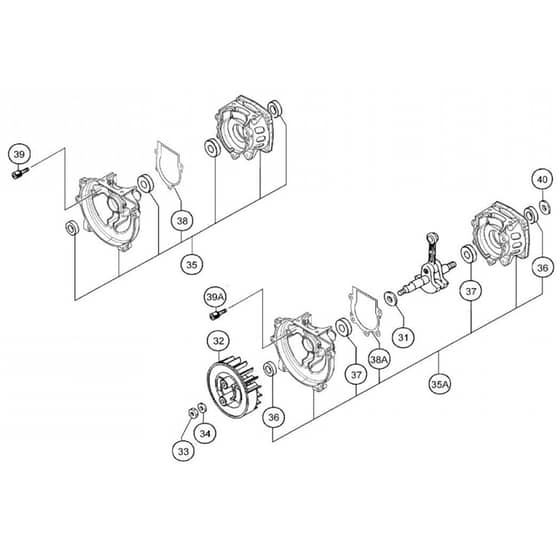

Tanaka TBC-340PFD Brushcutter - Crankcase Parts Diagram

	Part No.	Details
31	TK6689177 Available to backorder	6689177 Gear Shaft Shim 0.10	£1.70 £1.42
31	TK6684604 Available to backorder	6684604 Gear Shaft Shim 0.20	£1.70 £1.42
31	TK6689178 Available to backorder	6689178 Gear Shaft Shim 0.15	£1.70 £1.42
31	TK6684605 Available to backorder	6684605 Gear Shaft Shim 0.30	£1.70 £1.42
32	TK6687375 Available to backorder	6687375 Magneto Rotor Comp.	£30.05 £25.04
33	TK6684612 Available to backorder	6684612 Hex.Nut M8	£1.73 £1.44
34	TK6695184 Available to backorder	6695184 Small Washer 8	£1.73 £1.44
35	TK6686586 Available to backorder	6686586 Crank Case Ass'Y 1 - J0010	£54.11 £45.09
37	TK6684608 Available to backorder	6684608 Ball Bearing 6001 C3	£6.92 £5.77
38	TK6686723 Available to backorder	6686723 Crank Case Gasket 1 - J0010	£1.70 £1.42
39	TK6684903 Available to backorder	(039A) 6684903 Hex.Hole Bolt M5X16.S 5 J001001 - 040 992-01080-011 6684611 Bolt Washer M8	£1.73 £1.44
