Tanaka TBC-340 - Aug 2012 - Gear Case Guard

Description

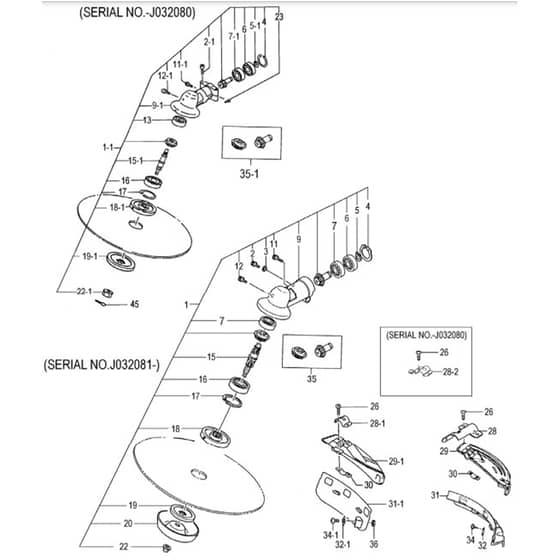

Tanaka TBC-340 Brushcutter - Gear Case Guard Parts Diagram

	Part No.	Details
1	TK6697660 Available to backorder	669-7660 Gear Case Ass'Y 1 J032081	£102.48 £85.40
2	TK6684829 Available to backorder	668-4829 Hex. Socket Hd. Bolt M5X12 1 J032081	£1.78 £1.48
3	TK6684834 Available to backorder	668-4834 Spring Washer 5	£1.78 £1.48
4	TK6695294 Available to backorder	669-5294 Ritaining Ring C-Type D26	£1.78 £1.48
5	TK6684821 Available to backorder	668-4821 Stop Ring C-10 Outer 1 J032081	£1.78 £1.48
6	TK6695526 Available to backorder	669-5526 Ball Bearing #6000Z 26Mm.Od	£10.03 £8.36
7	TK6695524 Available to backorder	669-5524 Ball Bearing #6000 26Mm.Od 2 J032081	£8.98 £7.48
11	TK6696497 Available to backorder	669-6497 Gear Case Set Pn 1 - J0320	£111.84 £93.20
11	TK6688771 Available to backorder	668-8771 Gear Case Ass'Y 26 Dia. 1 - W2006	£129.84 £108.20
11	TK6695499 Available to backorder	669-5499 Hex.Hole Bolt 6X30.S 1 J032081	£1.78 £1.48
13	TK6684734 Available to backorder	668-4734 Ball Bearing 609 1 - J0320	£7.16 £5.97
15	TK6688924 Available to backorder	668-8924 Gear Shaft 1 - J0320	£32.09 £26.74
16	TK6695555 Available to backorder	669-5555 Ball Bearing #6201Dd 32Mm.Od	£11.42 £9.52
17	TK6695295 Available to backorder	669-5295 Stop Ring C-32 Inner	£1.78 £1.48
18	TK310.38271.20 Available to backorder	669-9008 Cutter Holder 1 J032081	£10.54 £8.78
19	TK6699009 Available to backorder	669-9009 Cutter Holder Cap 1 J032081	£7.16 £5.97
20	TK6688995 In stock	669-7792 Nut Cover 1 J032081	£5.57 £4.64
21	TK6684709 Available to backorder	668-4709 Hex.Hole Bolt M5X25.S 2 - J0320	£1.78 £1.48
23	TK6689159 Available to backorder	668-9159 Gear Case Washer 1 - J0320	£1.78 £1.48
26	TK6697451 Available to backorder	668-4714 Hex.Hole Button Screw 6X25S	£0.97 £0.81
28	TK442.38257.20 Available to backorder	669-7867 Cover Bracket 26 1 J032081	£7.16 £5.97
29	TK6690276 Available to backorder	669-0276 Blade Guard 26Ce 1 D085851	£31.03 £25.86
30	TK6684748 Available to backorder	668-4748 Guard Holder	£3.48 £2.90
31	TK6690376 Available to backorder	669-0376 Blade Guard 1 D085851	£15.02 £12.52
32	TK6684750 Available to backorder	668-4750 Knife 1 D085851	£3.48 £2.90
34	TK6684751 Available to backorder	668-4751 Tapping Screw 4X14 1 D085851	£1.78 £1.48
35	TK6697741 Available to backorder	669-7741 Gear Pinion Set Spare 1 D085851	£42.85 £35.71
36	TK6684965 Available to backorder	668-4965 Nut M5 1 - D0858	£1.54 £1.28
45	TK6689168 Available to backorder	668-9168 Split Pin Set(10 Pcs.Pack)	£1.78 £1.48
51	TK6695315 Available to backorder	669-5315 Stop Ring Outer 10 1 - J0320	£1.78 £1.48
111	TK6684667 Available to backorder	668-4667 Hex.Hole Bolt M5X12.S 1 - J0320	£1.78 £1.48
121	TK6689109 Available to backorder	668-9109 Oiling Bolt 1 - J0320	£1.78 £1.48
151	TK6688946 Available to backorder	668-8946 Gear Shaft 1 - W2006	£33.56 £27.97
181	TK6689032 Available to backorder	668-9032 Cutter Holder 1 - J0320	£15.72 £13.10
191	TK6689055 Available to backorder	668-9055 Cutter Holder Cap 1 - J0320	£8.23 £6.86
281	TK6690315 Available to backorder	669-0315 Cover Bracket 26 1 - D0858	£7.16 £5.97
282	TK6690294 Available to backorder	669-0294 Cover Bracket 26 Dia. 1 - J0320	£1.78 £1.48
311	TK6690372 In stock	669-0372 Cover Guard 1 - D0858	Was £14.78 £12.32 Special Price £10.64 £8.87
321	TK6693386 Available to backorder	669-3386 Knife 1 - D0858	£7.16 £5.97
351	TK6688875 Available to backorder	668-8875 Gear.Pinion Set Spare 1 - D0858	£39.26 £32.72
