Tanaka TBC-340 - Aug 2012 - Engine 1

Name: Tanaka TBC-340 - Aug 2012 - Engine 1
SKU: tbctbc340engine1-group
Price: 1.48 GBP
Availability: InStock

Part No. tbctbc340engine1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

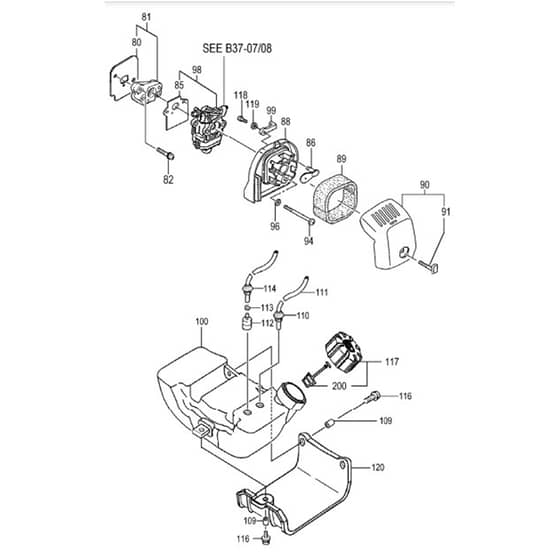

Tanaka TBC-340 Brushcutter - Engine 1 Parts Diagram

	Part No.	Details
80	TK6689864 Available to backorder	668-9864 Inlet Manifold Gasket	£1.78 £1.48
82	TK6695514 Available to backorder	669-5514 Hex.Hole Bolt 5X22.Ws	£1.78 £1.48
85	TK6684616 Available to backorder	668-4616 Carburetor Packing	£1.78 £1.48
86	TK6691278 Available to backorder	669-1278 Choke Plate 1.0	£1.78 £1.48
88	TK6690120 Available to backorder	669-0120 Cleaner Body Comp.	£7.16 £5.97
89	TK6690365 In stock	669-0365 Cleaner Sponge	£1.88 £1.57
90	TK6690421 Available to backorder	669-0421 Cleaner Cover Ass'Y	£16.44 £13.70
91	TK6698730 In stock	669-0384 Cover Fixing Bolt	£4.27 £3.56
94	TK6695353 Available to backorder	669-5353 Screw 5X57.S	£1.78 £1.48
96	TK6684864 Available to backorder	668-4864 Small Washer 5	£1.78 £1.48
98	TK6690501 Available to backorder	669-0501 Carburetor Set Wyj135A 1 - B0310	£121.32 £101.10
98	TK6690503 Available to backorder	669-0503 Carburetor Set Wyj296 1 B031001	£121.32 £101.10
99	TK6691239 Available to backorder	669-1239 Choke Control Lever	£1.78 £1.48

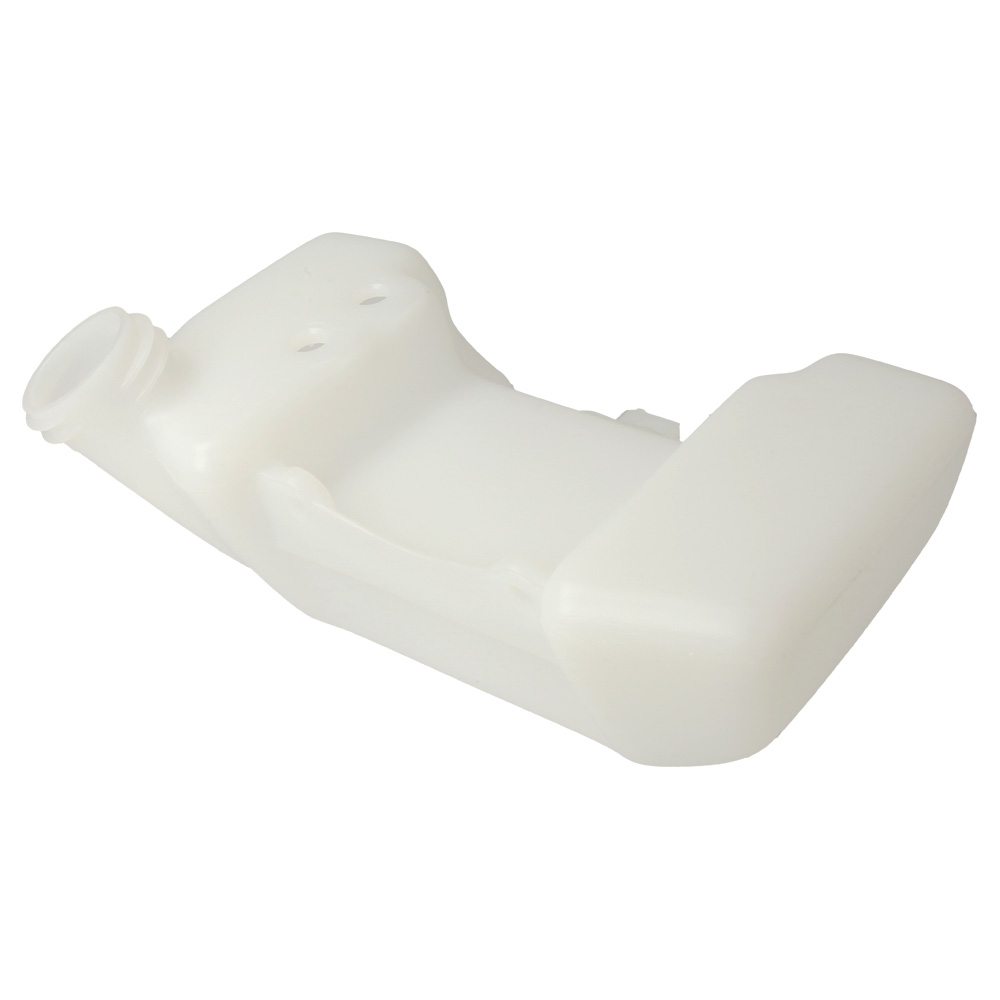

100	TK6691588 Available to backorder	669-1588 Tank Comp. Wht	£18.85 £15.71
109	TK6684623 In stock	668-4623 Collar C 3 W200671	£1.85 £1.54
109	TK6692244 Available to backorder	669-2244 Collar 5.8 3 - W2006	£1.78 £1.48
110	TK6688156 In stock	668-8156 Fuel Pipe Grommet	£2.70 £2.25
112	TK6684620 Available to backorder	668-4620 Pump Filter Body Comp.	£7.58 £6.32
113	TK6685198 Available to backorder	668-5198 Clip D6	£1.78 £1.48
116	TK6695506 Available to backorder	669-5506 Hex Hole Bolt 5X20Ps 3 W200671	£1.78 £1.48
116	TK6695386 In stock	669-5386 Screw 5X16.Ps 3 - W2006	£1.86 £1.55
117	TK6685049 In stock	668-5049 Tank Cap Ass'Y	£11.64 £9.70
118	TK6695280 Available to backorder	669-5280 Tap Screw 4X14 P	£1.78 £1.48
119	TK6685070 Available to backorder	668-5070 Bolt Washer M4	£1.78 £1.48
120	TK6694793 Available to backorder	669-4793 Stand 1 W200671	£5.38 £4.48
200	TK6692059 Available to backorder	668-4625 Tank Cap Chain	£1.78 £1.48
