Tanaka TBC-290S - Engine 1

Name: Tanaka TBC-290S - Engine 1
SKU: tbctbc290sengine1-group
Price: 1.48 GBP
Availability: InStock

Part No. tbctbc290sengine1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

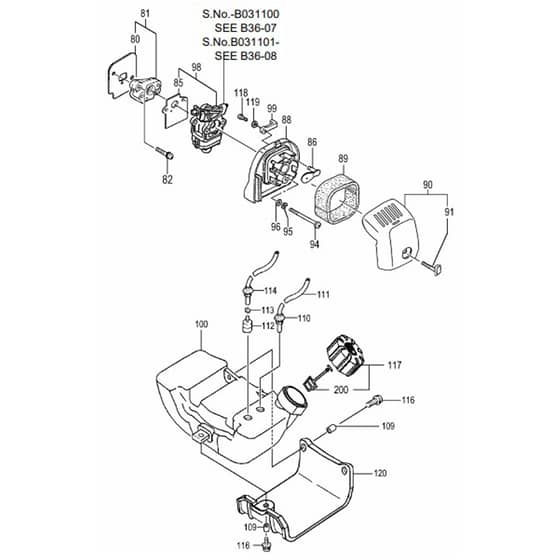

Tanaka TBC-290S Brushcutter - Engine 1 Parts Diagram

	Part No.	Details
80	TK6689895 Available to backorder	Inlet Maniford Gascket	£1.78 £1.48
81	TK6689972 Available to backorder	Insulator Set Spare	£10.03 £8.36
82	TK6695515 Available to backorder	Hex. Hole Bolt 5X25Ws	£1.78 £1.48
85	TK6684616 Available to backorder	Carburetor Gasket	£1.78 £1.48
86	TK6691278 Available to backorder	Choke Plate 1.0	£1.78 £1.48
88	TK6690120 Available to backorder	Cleaner Body Comp.	£7.16 £5.97
89	TK6690365 In stock	Cleaner Sponge	£1.88 £1.57
90	TK6690421 Available to backorder	Cleaner Cover Ass'Y	£16.44 £13.70
91	TK6698730 In stock	Cover Fixing Bolt	£4.27 £3.56
94	TK6694914 Available to backorder	Screw 5X55	£1.78 £1.48
95	TK6684662 Available to backorder	S.Washer 5	£1.78 £1.48
96	TK6684864 Available to backorder	Small Washer 5	£1.78 £1.48
98	TK6690500 Available to backorder	Carburetor Set Wyj392 1 B031101	£115.68 £96.40
98	TK6690499 Available to backorder	Carburetor Set Wyk131 1 - B0311	£80.76 £67.30
99	TK6691239 Available to backorder	Choke Control Lever	£1.78 £1.48
100	TK6691587 Available to backorder	Tank Comp. Or	£18.41 £15.34
109	TK6684623 In stock	Collar C 3 W251701	£1.85 £1.54
109	TK6692244 Available to backorder	Collar 5.8 3 - W2517	£1.78 £1.48
110	TK6688156 In stock	Fuel Pipe Grommet	£2.70 £2.25
112	TK6684620 Available to backorder	Pump Filter Body Comp.	£7.58 £6.32
116	TK6695386 In stock	Screw 5X16.Ps 3 - W2517	£1.86 £1.55
116	TK6695506 Available to backorder	Hex Hole Bolt 5X20Ps 3 W251701	£1.78 £1.48
117	TK6685049 In stock	Tank Cap Ass'Y (Black)	£11.64 £9.70
118	TK6695280 Available to backorder	Tapping Screw 4X15	£1.78 £1.48
119	TK6685070 Available to backorder	Washer 4	£1.78 £1.48
120	TK6694793 Available to backorder	Stand 1 W251701	£5.38 £4.48
200	TK6692059 Available to backorder	Tank Cap Chain	£1.78 £1.48
