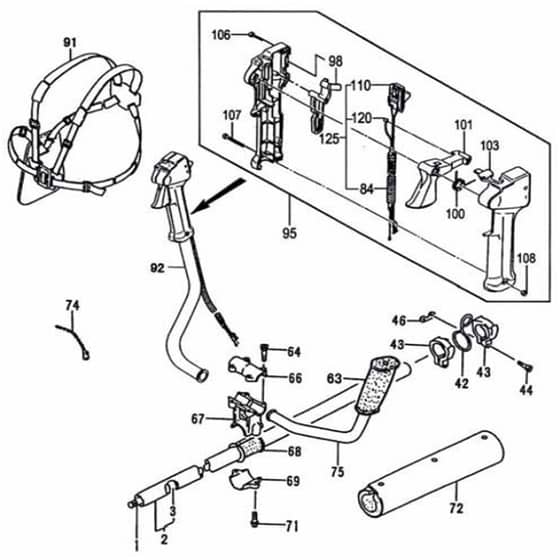

Tanaka TBC-270PFD Brushcutter - Operation Pipe Parts Diagram

	Part No.	Details
1	TK6689465 Available to backorder	Drive Shaft 7X1504L Solid	£27.11 £22.59
2	TK6696006 Available to backorder	Drive Shaft Pipe Comp.	£77.52 £64.60
3	TK6689518 Available to backorder	Bushing Ass'Y	£3.58 £2.98
42	TK6689274 Available to backorder	Lifting Metal 90 Dgr Swivel	£3.58 £2.98
43	TK6689258 Available to backorder	Lifting Metal Collar 26	£3.58 £2.98
44	TK6695501 Available to backorder	Hex. Hole Bolt 5X30.P	£1.78 £1.48
46	TK6689100 Available to backorder	Special Nut	£1.78 £1.48
63	TK6684708 In stock	Handle Grip	£5.57 £4.64
64	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.78 £1.48
66	TK6684710 Available to backorder	Handle Bracket A	£11.09 £9.24
67	TK6684711 Available to backorder	Handle Bracket B	£16.34 £13.62
68	TK6691187 Available to backorder	Cushion Rubber	£3.58 £2.98
69	TK6684713 Available to backorder	Handle Bracket C	£10.37 £8.64
71	TK6697451 Available to backorder	Hex. Hole Button Screw 6X25S	£0.97 £0.81
72	TK6689285 Available to backorder	Cushion Pad Comp.	£8.94 £7.45
74	TK6684715 Available to backorder	Clamp B.	£1.78 £1.48
75	TK6684716 In stock	Left Handle	£25.92 £21.60
84	TK6687546 Available to backorder	Protection Tibu	£3.58 £2.98
95	TK6693765 Available to backorder	Throttle Lever Ass'Y 19 Dia.	£58.96 £49.13
98	TK6684721 Available to backorder	Safety Lever	£5.38 £4.48
100	TK6684722 Available to backorder	Return Spring	£1.78 £1.48
101	TK6684723 Available to backorder	Throttle Lever	£8.59 £7.16
103	TK6684724 Available to backorder	Blind Plug	£1.78 £1.48
106	TK6684725 Available to backorder	Screw 4X20 Black	£1.78 £1.48
107	TK6684726 Available to backorder	Screw 5X30 Black	£1.78 £1.48
108	TK6684727 Available to backorder	Contal Nut 5	£1.78 £1.48
110	TK6687460 Available to backorder	Stop Switch	£22.46 £18.72
120	TK6694023 Available to backorder	Throttle Wire	£20.38 £16.98
125	TK6693978 Available to backorder	Throttle Wire Comp.	£34.61 £28.84
