Tanaka TBC-2501DS - Operation Pipe

Name: Tanaka TBC-2501DS - Operation Pipe
SKU: tbctbc2501dsoperationpipe-group
Price: 1.44 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

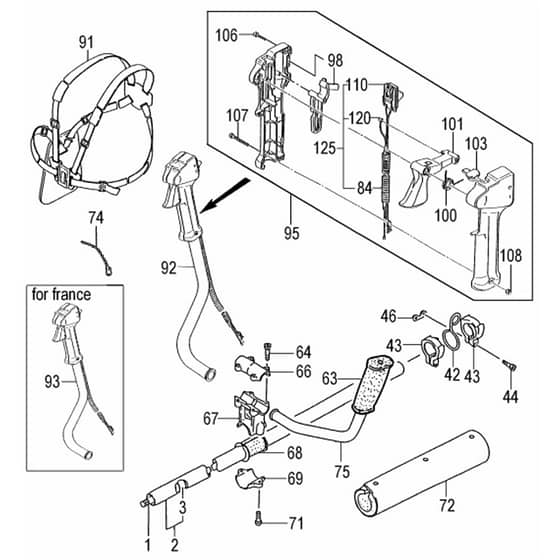

Tanaka TBC-2501DS Brushcutter - Operation Pipe Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	TK6689477 Out of stock	Drive Shaft 1487L	£21.80 £18.17
2	TK6689385 Out of stock	Drive Shaft Pipe Comp. 1 1 - A2777	£70.04 £58.37
2	TK6689386 Out of stock	Drive Shaft Pipe Comp. 1 A277751	£57.14 £47.62
3	TK6684831 Out of stock	Bush Ass'Y	£3.14 £2.62
42	TK6689274 Out of stock	Lifting Metal 90 Dgr Sw	£3.14 £2.62
43	TK6689255 Out of stock	Lifting Metal Collar	£3.14 £2.62
44	TK6695501 Out of stock	Hex. Hole Bolt 5X30.P	£1.73 £1.44
46	TK6689100 Out of stock	Special Nut	£1.76 £1.47
63	TK6684708 Out of stock	Handle Grip	£4.55 £3.79
64	TK6684709 Out of stock	Hex. Hole Bolt 5X25.S	£1.73 £1.44
66	TK6684710 Out of stock	Handle Bracket A	£9.35 £7.79
67	TK6684711 Out of stock	Handle Bracket B	£14.26 £11.88
68	TK6684712 Out of stock	Handle Bracket Rubber	£3.14 £2.62
69	TK6684713 Out of stock	Handle Bracket C	£8.72 £7.27
71	TK6697451 Out of stock	Hex. Hole Button Sc	£1.73 £1.44
72	TK6689285 Out of stock	Cushion Pad Comp.	£8.64 £7.20
74	TK6684715 Out of stock	Clamp B.	£1.76 £1.47
75	TK6684716 Out of stock	Left Handle	£22.58 £18.82
84	TK6687546 Out of stock	Protection Tube	£3.47 £2.89
93	TK6691075 Out of stock	Right Handle Sk	£27.92 £23.27
95	TK6693765 Out of stock	Throttle Lever Ass'Y	£61.00 £50.83
98	TK6684721 Out of stock	Safety Lever	£5.38 £4.48
100	TK6684722 Out of stock	Return Spring	£1.73 £1.44
101	TK6684723 Out of stock	Throttle Lever	£8.59 £7.16
103	TK6684724 Out of stock	Blind Plug	£1.76 £1.47
106	TK6684725 Out of stock	Screw 4X20 Black	£1.73 £1.44
107	TK6684726 Out of stock	Screw 5X30 Black	£1.73 £1.44
108	TK6684727 Out of stock	Contal Nut 5	£1.73 £1.44
110	TK6687460 Out of stock	Stop Switch	£18.95 £15.79
120	TK6694023 Out of stock	Throttle Wire	£19.70 £16.42
125	TK6693979 Out of stock	Throttle Wire Comp.	£49.99 £41.66
