Tanaka TBC-2501DS - Engine 2

Name: Tanaka TBC-2501DS - Engine 2
SKU: tbctbc2501dsengine2-group
Price: 0.34 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

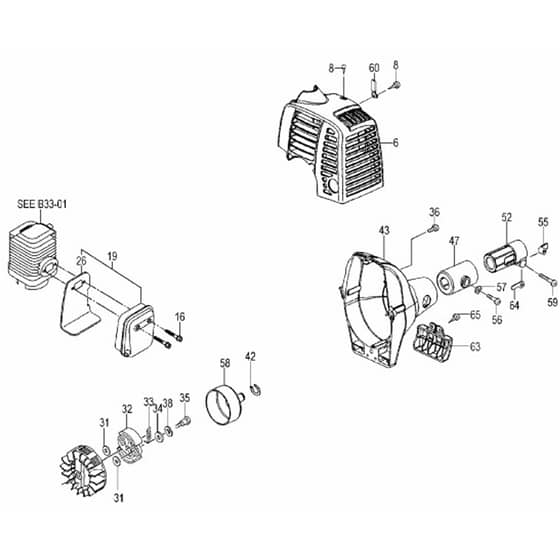

Tanaka TBC-2501DS Brushcutter - Engine 2 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
6	TK6692806 Available to backorder	Muffler Protector	£18.78 £15.65
8	TK6695104 Available to backorder	Tapping Screw 4.5X10	£1.73 £1.44
16	TK6695483 Available to backorder	Screw 5X45W	£1.72 £1.43
19	TK6692494 Available to backorder	Muffler Set Spare	£83.87 £69.89
26	TK6687262 Available to backorder	Heat Shield	£27.05 £22.54
31	TK6684642 Available to backorder	Clutch Washer B	£1.70 £1.42
32	TK6684643 Available to backorder	Clutch Shoe Comp.	£9.36 £7.80
33	TK6684644 Available to backorder	Clutch Spring	£1.72 £1.43
34	TK6689528 Available to backorder	Clutch Plate A	£1.70 £1.42
35	TK6684646 Available to backorder	Step Bolt	£1.76 £1.47
36	TK6695418 Available to backorder	Screw 5X16.Ws	£1.73 £1.44
38	TK6684648 Available to backorder	Bent Washer 8	£1.73 £1.44
42	TK6697442 Available to backorder	Stop Ring C-12 Outer	£0.41 £0.34
43	TK6687026 Available to backorder	Fan Case Comp.	£21.96 £18.30
47	TK6691823 Available to backorder	Cushion Rubber	£4.55 £3.79
52	TK6689651 Available to backorder	Pipe Holder 24 Dia.	£8.10 £6.75
55	TK6689664 Available to backorder	Metal Fitting	£4.55 £3.79
56	TK6695047 Available to backorder	Hex. Hole Bolt 5X16	£1.73 £1.44
57	TK6684918 Available to backorder	Washer 5	£1.73 £1.44
58	TK6688601 Available to backorder	Clutch Shaft Comp.	£14.78 £12.32
59	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.72 £1.43
60	TK6688011 Available to backorder	Cord Clamp Comp. 1 - W2004	£1.70 £1.42
63	TK6694794 Available to backorder	Stand Black	£6.24 £5.20
64	TK6689159 Available to backorder	Gear Case Washer	£1.70 £1.42
65	TK6684637 Available to backorder	Tapping Screw 4.5X12	£1.73 £1.44
