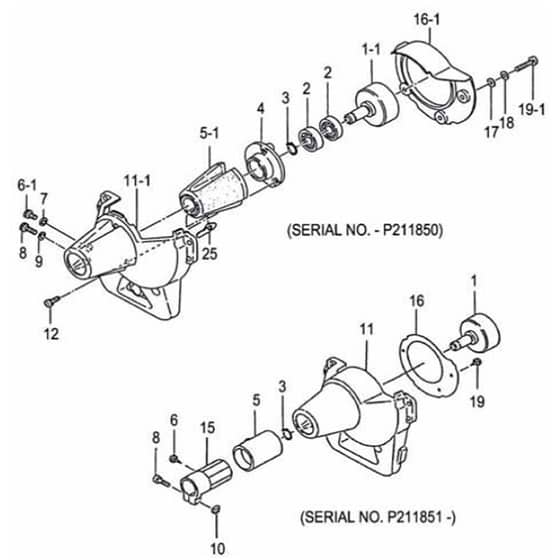

Tanaka TBC-250-SDH Brushcutter - Clutch Case Parts Diagram

	Part No.	Details
1	TK6688574 Available to backorder	Clutch Shaft Comp. 1 P211851	£24.25 £20.21
2	TK6695532 Available to backorder	Ball Bearing #6001Z 28Mm.Od 2 - P2118	£10.63 £8.86
3	TK6697442 Available to backorder	Stop Ring C-12 Outer	£0.35 £0.29
4	TK6689696 Available to backorder	Clutch Flange 1 - P2118	£8.59 £7.16
5	TK599.00980.20 Available to backorder	Cushion Rubber 1 P211851	£5.69 £4.74
7	TK6684834 Available to backorder	S.Washer 5 1 - N2027	£1.78 £1.48
8	TK6695048 Available to backorder	Hex. Hole Bolt 5X20 1 - P2118	£1.78 £1.48
8	TK6695090 Available to backorder	Flange Hex. Hole Bolt 5X20 1 P211851	£1.45 £1.21
10	TK6695176 Available to backorder	Square Nut 5 1 P211851	£1.78 £1.48
11	TK6686900 Available to backorder	Fancase Comp. 1 P211851	£39.26 £32.72
11	TK6688590 Available to backorder	Clutch Drum Comp. 1 - P2118	£25.06 £20.88
12	TK6695335 Available to backorder	Screw 5X12.S 3 - P2118	£1.78 £1.48
15	TK360.00980.20 Available to backorder	Pipe Holder 1 P211851	£5.34 £4.45
16	TK6686736 Available to backorder	Heat Shield 1 P211851	£2.98 £2.48
17	TK6685070 Available to backorder	Washer 4 3 - P2118	£1.78 £1.48
18	TK6695211 Available to backorder	S.Washer 4 3 - P2118	£1.78 £1.48
19	TK6684636 Available to backorder	Tapping Screw 4.5X16 3 P211851	£1.78 £1.48
25	TK6688307 Available to backorder	Spacer	£1.78 £1.48
51	TK6691831 Available to backorder	Cushion Rubber Comp. 1 - P2118	£12.64 £10.53
61	TK6695042 Available to backorder	Hex. Hole Bolt 5X10 1 - P2118	£1.62 £1.35
111	TK6686993 Available to backorder	Fan Case 1 - P2118	£70.80 £59.00
161	TK6686741 Available to backorder	Heat Shield 1 - P2118	£4.91 £4.09
191	TK6694865 Available to backorder	Screw 4X12 3 - P2118	£1.78 £1.48
