Tanaka SUM-500DX - Crankcase

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka SUM-500DX - Crankcase

Tanaka SUM-500DX - Crankcase

Description

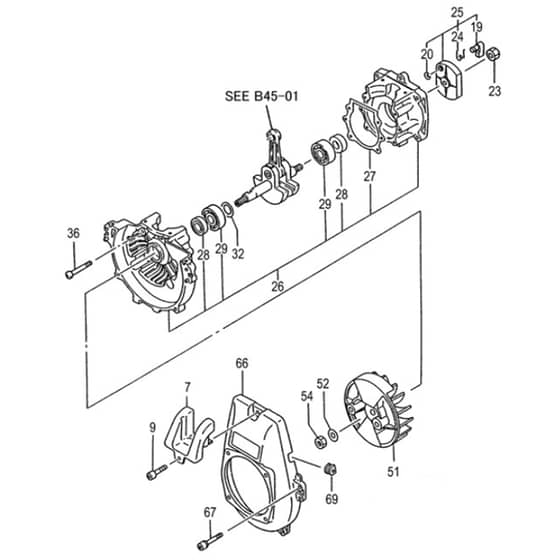

Tanaka SUM-500DX Brushcutter - Crankcase Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	7		TK6688346 Available to backorder	Spark Plug Cover		£4.55 £3.79
	9		TK6684634 In stock	Hex.Hole Bolt 5X20Ps		£1.72 £1.43
	9		TK6693302 Available to backorder	Starter Pawl		£3.47 £2.89
	20		TK6684683 Available to backorder	Stop Ring E-5		£1.73 £1.44
	23		TK6695139 Available to backorder	Small Nut 10		£1.73 £1.44
	24		TK6693345 Available to backorder	Starter Pawl Spring		£3.47 £2.89
	25		TK6693395 Available to backorder	Starter Pulley		£17.27 £14.39
	26		TK6686556 Available to backorder	Crank Case Ass'Y		£78.44 £65.37
	27		TK6686714 Available to backorder	Crank Case Gasket		£1.70 £1.42
	28		TK6695637 Available to backorder	Oil Seal Ud15257		£5.20 £4.33
	29		TK6695557 Available to backorder	Ball Bearing #6202 35Mm.Od		£8.30 £6.92
	32		TK6686470 Available to backorder	Crank Shaft Shim 0.10		£1.70 £1.42
	32		TK071.02007.24 Available to backorder	Crank Shaft Shim 0.30		£1.70 £1.42
	32		TK6686472 Available to backorder	Crank Shaft Shim 0.20		£1.70 £1.42
	36		TK6684786 In stock	Hex. Hole Bolt 5X30S		£1.72 £1.43
	51		TK6687372 Available to backorder	Magneto Rotor Comp.		£29.78 £24.82
	52		TK6695198 Available to backorder	Washer 10		£1.73 £1.44
	54		TK6695138 Available to backorder	Nut 10		£1.73 £1.44
	66		TK6686982 Available to backorder	Fan Case		£33.08 £27.57
	67		TK6684709 Available to backorder	Hex. Hole Bolt 5X20.S		£1.72 £1.43
	69		TK6688057 Available to backorder	Primary Cord Grommet		£1.70 £1.42

Description

Tanaka SUM-500DX Brushcutter - Crankcase Parts Diagram
