Tanaka SUM-400 - Gear Case Guard

Name: Tanaka SUM-400 - Gear Case Guard
SKU: sumsum400w107051gearcaseguard-group
Price: 0.81 GBP
Availability: InStock

Part No. sumsum400w107051gearcaseguard-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

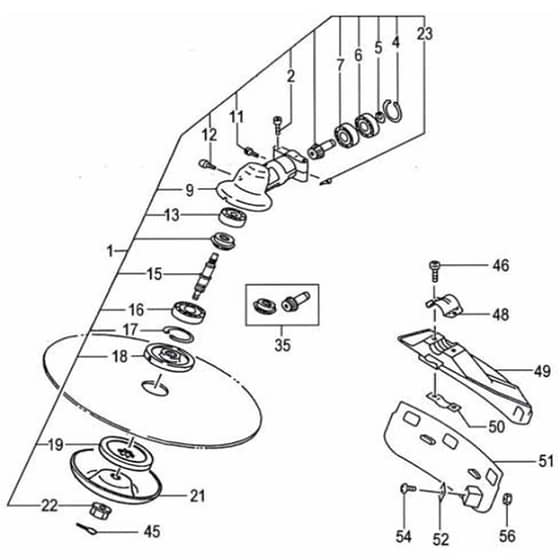

Tanaka SUM-400 Brushcutter - Gear Case Guard Parts Diagram

	Part No.	Details
1	TK6688771 Available to backorder	Gear Case Ass'Y 26 Dia.	£129.84 £108.20
2	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.78 £1.48
4	TK6695294 Available to backorder	Stop Ring C-26 Inner	£1.78 £1.48
5	TK6695315 Available to backorder	Stop Ring Outer 10	£1.78 £1.48
6	TK6695526 Available to backorder	Ball Bearing #6000Z 26Mm.Od	£10.03 £8.36
7	TK6695524 Available to backorder	Ball Bearing #6000 26Mm.Od	£8.98 £7.48
11	TK6684667 Available to backorder	Hex. Hole Bolt 5X12S	£1.78 £1.48
12	TK6689109 Available to backorder	Oiling Bolt	£1.78 £1.48
13	TK6684734 Available to backorder	Ball Bearing 609	£7.16 £5.97
15	TK6688946 Available to backorder	Gear Shaft	£33.56 £27.97
16	TK6695554 Available to backorder	Ball Bearing 6201D 32Mm.Od	£9.64 £8.03
17	TK6695295 Available to backorder	Stop Ring C-32 Inner	£1.78 £1.48
18	TK6689032 Available to backorder	Cutter Holder	£15.72 £13.10
19	TK6689055 Available to backorder	Cutter Holder	£8.23 £6.86
21	TK6688995 In stock	Protection Cover B	£5.57 £4.64
23	TK6689160 Available to backorder	Gear Case Washer	£1.45 £1.21
35	TK6688875 Available to backorder	Gear.Pinion Set Spare	£39.26 £32.72
45	TK6689168 Available to backorder	Split Pin Set(10 Pcs.Pack)	£1.78 £1.48
46	TK6697451 Available to backorder	Hex. Hole Button Screw 6X25S	£0.97 £0.81
48	TK6690294 Available to backorder	Cover Bracket 26 Dia.	£1.78 £1.48
50	TK6684748 Available to backorder	Safety Cover Holder	£3.48 £2.90
51	TK6690372 In stock	Cover Guard	Was £14.78 £12.32 Special Price £10.64 £8.87
52	TK6693386 Available to backorder	Knife	£7.16 £5.97
56	TK6684965 Available to backorder	Hex. Nut 5	£1.54 £1.28
