Tanaka SF-9566 - Gear Case

Name: Tanaka SF-9566 - Gear Case
SKU: sfsf9566gearcase-group
Price: 1.35 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Tanaka SF-9566 Multi Tool - Gear Case Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	TK6688653 Available to backorder	Gear Case A 24 Dia	£45.08 £37.57
3	TK6695582 Available to backorder	Ball Bearing 6901Zz 24Mm.Od	£15.22 £12.68
4	TK6695302 Available to backorder	Stop Ring S-12 Inner	£1.72 £1.43
5	TK6684732 Available to backorder	Stop Ring C-24 Inner	£1.72 £1.43
6	TK6684775 Available to backorder	Ball Bearing 608 Zz C3	£8.30 £6.92
7	TK6695293 Available to backorder	Stop Ring C-22 Inner	£1.72 £1.43
8	TK6688643 Available to backorder	Grease Nipple Comp.	£1.70 £1.42
11	TK6695042 Available to backorder	Hex. Hole Bolt 5X10	£1.62 £1.35
12	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.72 £1.43
13	TK6695078 Available to backorder	Hex. Hole Bolt 6X12	£1.73 £1.44
14	TK6684822 Available to backorder	Special Washer B	£1.73 £1.44

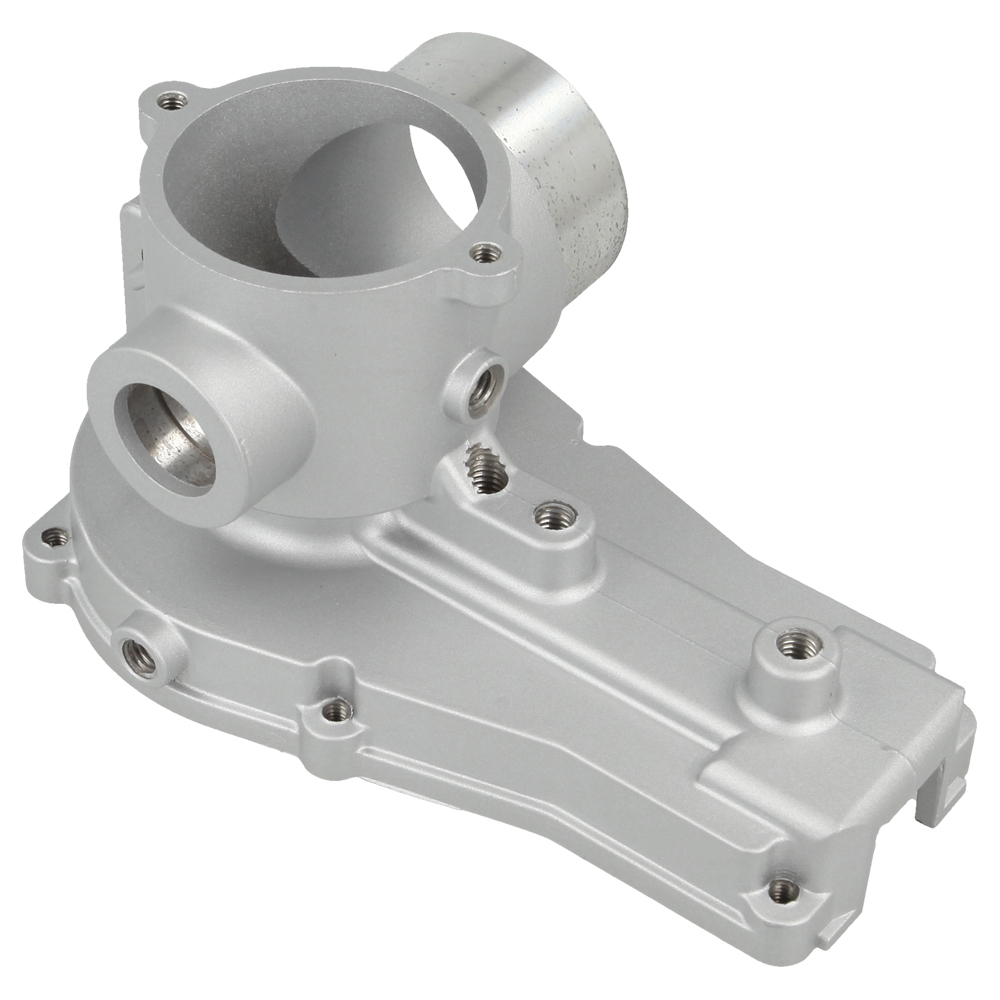

15	TK6695981 Available to backorder	Gear Case B	£62.08 £51.73
16	TK6695528 Available to backorder	Ball Bearing #6000 2Rs C3	£12.46 £10.38
17	TK6695294 Available to backorder	Stop Ring C-26 Inner	£1.72 £1.43
19	TK6695310 Available to backorder	Stop Ring E-6	£1.72 £1.43
20	TK6689167 Available to backorder	Gear Case Cover A	£1.70 £1.42
22	TK6695035 Available to backorder	Hex Hole Bolt 4X8	£1.73 £1.44
26	TK6688089 Available to backorder	Handle	£6.92 £5.77
29	TK6695079 Available to backorder	Hex Hole Button Screw 6X15	£1.72 £1.43
30	TK6686669 Available to backorder	Grease Seald	£1.72 £1.43
36	TK6691200 Available to backorder	Handle Knob A Comp.	£5.10 £4.25
41	TK6695016 Available to backorder	Plus Bolt 6X14	£1.73 £1.44
42	TK6684835 Available to backorder	Hex. Nut 6	£1.73 £1.44
43	TK6690744 Available to backorder	Support Plate	£15.29 £12.74
44	TK6686659 Available to backorder	Grease Seal B	£1.70 £1.42
