Tanaka PM-55 - Engine 1

Description

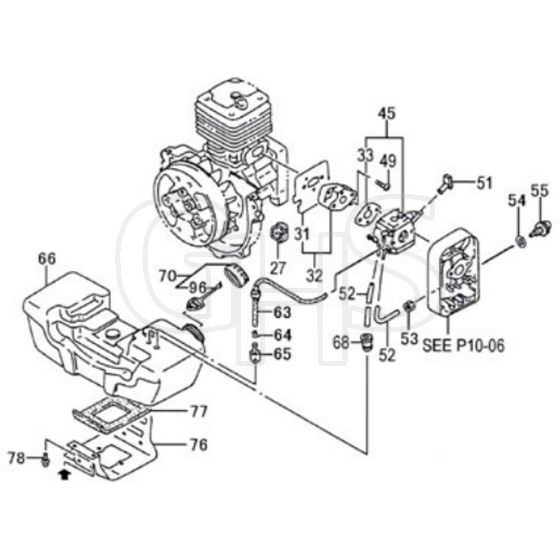

Tanaka PM-55 Brush Cutter - Engine 1 Parts Diagram

	Part No.	Details
27	TK6692225	Fuel Tank Cushion Rubber	Out of stock	£1.76 £1.47
31	TK6689883	Inlet Manifold Gasket	Out of stock	£1.76 £1.47
32	TK6689950	Carb. Insulator Set	Out of stock	£11.76 £9.80
33	TK6689826	Carburetor Gasket	Out of stock	£1.76 £1.47
45	TK6690467	Carburetor Set Hda97	Out of stock	£122.96 £102.47
49	TK6695423	Screw 5X24Ws	Out of stock	£1.73 £1.44
51	TK6691004	Choke Lever	Out of stock	£1.76 £1.47
52	TK6685267	Fuel Pipe 2.5X4X90	Out of stock	£1.73 £1.44
53	TK6695139	Small Nut 10	Out of stock	£1.73 £1.44
54	TK6695235	Inner Toothed Washer 10	Out of stock	£1.73 £1.44
55	TK6690080	Priming Pump Comp.	Out of stock	£9.35 £7.79
63	TK6688172	Fuel Pipe Ass'Y 3X5X230	Out of stock	£5.84 £4.87
64	TK6684619	Clip 6.3 Dia.	Out of stock	£1.73 £1.44
65	TK6692273	Pump Filter Body Ass'Y	Out of stock	£11.40 £9.50
66	TK6691526	Fuel Tank Vermilion	Out of stock	£24.66 £20.55
70	TK6691763	Tank Cap D Ass'Y.Orange	In stock	£12.24 £10.20
76	TK6691927	Tank Holding Band	Out of stock	£8.72 £7.27
77	TK6692193	Cushion Rubber	Out of stock	£8.72 £7.27
78	TK6695386	Screw 5X16.Ps	Out of stock	£1.73 £1.44
96	TK6692059	Tank Cap Chain	Out of stock	£1.73 £1.44
