Tanaka PM-32 - Throttle Lever

Part No. pmpm32p218651throttlelever-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Tanaka PM-32 - Throttle Lever

Tanaka PM-32 - Throttle Lever

Description

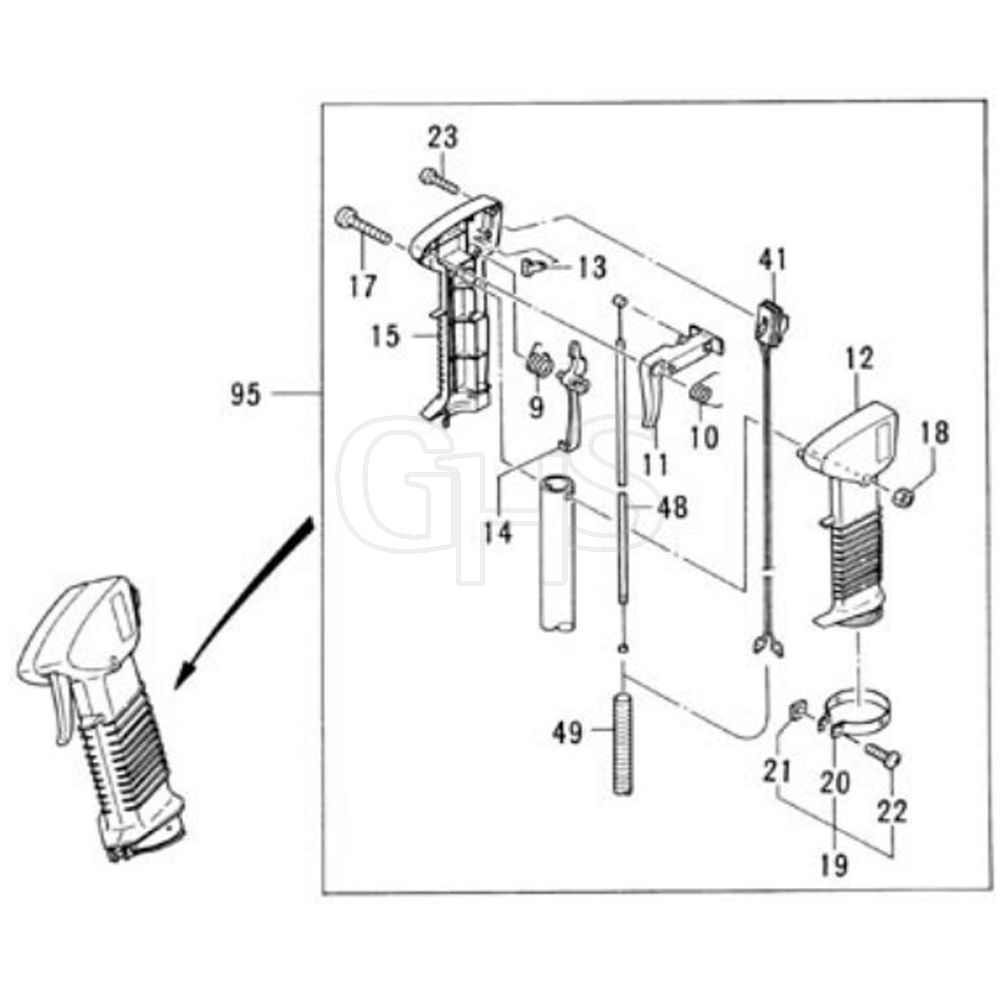

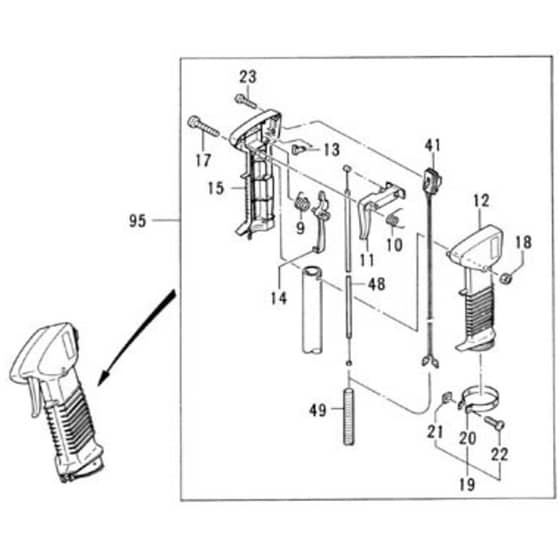

Tanaka PM-32 Brush Cutter - Throttle Lever Parts Diagram

Ref.		Img.	Part No.	Details
	41		TK156.37477.80 Available to backorder	Stop Buttom Ass'Y		£27.31 £22.76
	48		TK6695814 Available to backorder	Throttle Wire Comp.		£22.80 £19.00
	49		TK164.07070.80 Available to backorder	Split Protection Tube 708L		£2.06 £1.72
	95		TK6693747 Available to backorder	Throttle Lever Assy 19 Dia. 1 - S2634		£62.04 £51.70
	95		TK6693758 Available to backorder	Throttle Lever Ass'Y 1 S263500		£62.04 £51.70
	98		TK6688330 Available to backorder	Safety Lever		£5.38 £4.48
	99		TK6694835 Available to backorder	Lock Button Spring		£3.58 £2.98
	100		TK6693602 Available to backorder	Return Spring		£1.78 £1.48
	101		TK6693806 Available to backorder	Throttle Arm		£7.16 £5.97
	103		TK6694830 Available to backorder	Lock Button		£3.58 £2.98
	106		TK6695279 Available to backorder	Tapping Screw 4X18		£1.45 £1.21
	107		TK6694903 Available to backorder	Screw 5X35		£1.78 £1.48
	108		TK6684727 Available to backorder	Contal Nut 5		£1.78 £1.48
	110		TK889.37411.20 Available to backorder	Throttle Lever Band B		£3.11 £2.59
	111		TK6696512 Available to backorder	Square Nut 6		£1.78 £1.48
	112		TK6695460 Available to backorder	Slotted.Phillip Screw 6X20		£2.81 £2.34
	120		TK6694015 Available to backorder	Throttle Wire B Comp. 1 - S1634		£61.00 £50.83

Description

Tanaka PM-32 Brush Cutter - Throttle Lever Parts Diagram
