Tanaka PM-25,25D - Pm25 Operation Pipe

Description

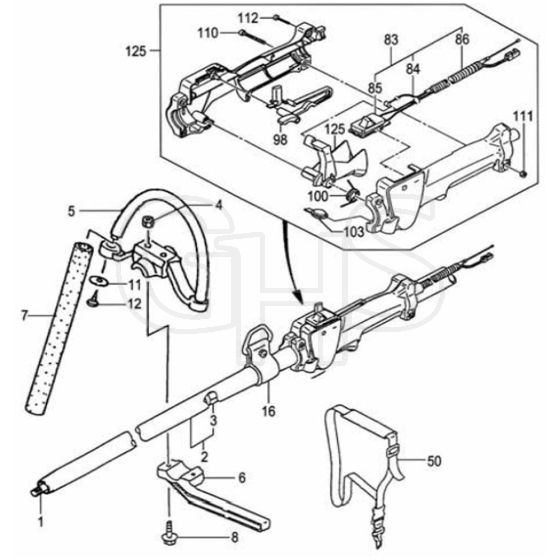

Tanaka PM-25,25D Brush Cutter - Pm25 Operation Pipe Parts Diagram

	Part No.	Details
1	TK6689465	Drive Shaft 7X1504L Solid	Out of stock	£23.66 £19.72
2	TK6689385	Drive Shaft Pipe Comp. 1450L	Out of stock	£70.04 £58.37
3	TK6689521	Bushing Ass'Y	Out of stock	£3.14 £2.62
4	TK6684835	Hex. Nut 6	Out of stock	£1.73 £1.44
5	TK6691046	Loop Handle 24 Dia. Black	Out of stock	£8.11 £6.76
6	TK6684837	Barrier 24 Dia. Black	Out of stock	£6.80 £5.67
7	TK6691098	Handle Grip	Out of stock	£10.88 £9.07
8	TK6684838	Bolt 6X43.P	Out of stock	£1.73 £1.44
11	TK6689681	Brake Shaft Washer	Out of stock	£1.76 £1.47
16	TK6689277	Lifting Metal Ass'Y	Out of stock	£4.55 £3.79
25	TK6693767	Throttle Lever Ass'Y 24 Dia.	Out of stock	£57.77 £48.14
50	TK6692859	Shoulder Belt Ass'Y Single	Out of stock	£17.22 £14.35
83	TK6693978	Throttle Wire Comp.	Out of stock	£24.60 £20.50
84	TK6694022	Throttle Wire	Out of stock	£12.78 £10.65
86	TK6687526	Protection Tube 7X175	Out of stock	£1.76 £1.47
98	TK6684721	Safety Lever	Out of stock	£5.38 £4.48
100	TK6684722	Return Spring	Out of stock	£1.73 £1.44
103	TK6684724	Blind Plug	Out of stock	£1.76 £1.47
110	TK6684803	Screw 5X20	Out of stock	£1.73 £1.44
111	TK6684727	Contal Nut 5	Out of stock	£1.73 £1.44
112	TK6684725	Screw 4X20 Black	Out of stock	£1.73 £1.44
125	TK6684804	Throttle Lever	Out of stock	£6.92 £5.77
