Tanaka PM-25,25D - Crankcase

Description

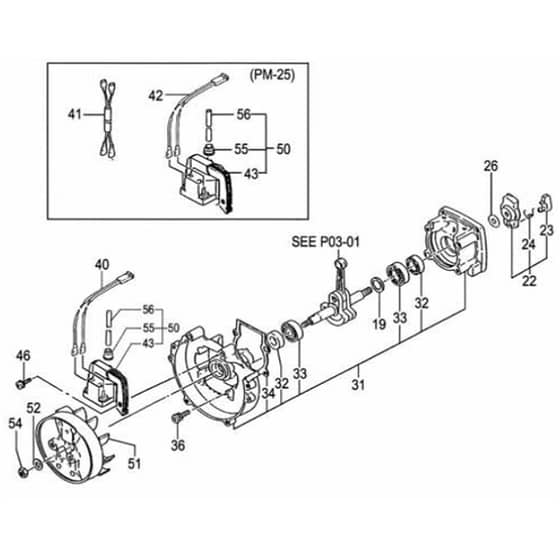

Tanaka PM-25,25D Brush Cutter - Crankcase Parts Diagram

	Part No.	Details
19	TK6689178	Gear Shaft Shim 0.15	Out of stock	£1.76 £1.47
19	TK6684605	Gear Shaft Shim 0.30	Out of stock	£1.76 £1.47
19	TK6689177	Gear Shaft Shim 0.10	Out of stock	£1.76 £1.47
19	TK6684604	Gear Shaft Shim 0.20	Out of stock	£1.76 £1.47
22	TK6693405	Starter Pulley Ass'Y	Out of stock	£7.20 £6.00
23	TK6693319	Starter Pawl	Out of stock	£3.47 £2.89
24	TK6684684	Starter Pawl Spring	Out of stock	£3.47 £2.89
26	TK6689645	Clutch Washer B	Out of stock	£1.76 £1.47
31	TK6686493	Crankcase Ass'Y	Out of stock	£58.80 £49.00
32	TK6684607	Oil Seal Tb 12227	Out of stock	£3.47 £2.89
33	TK6684608	Ball Bearing #6001 28Mm.Od	Out of stock	£6.92 £5.77
34	TK6686718	Crank Case Gasket	Out of stock	£1.76 £1.47
36	TK6695343	Screw 5X25.S	Out of stock	£1.73 £1.44
40	TK6687963	Lead Wire Ass'Y	Out of stock	£7.55 £6.29
41	TK6687867	Stop Cord Comp. B180M 1 - U2712	Out of stock	£4.55 £3.79
46	TK6695420	Screw 5X20.Ws	Out of stock	£1.73 £1.44
50	TK6687642	Ignition Coil Ass'Y	Out of stock	£51.14 £42.62
51	TK6687361	Magneto Rotor Comp.	Out of stock	£28.28 £23.57
52	TK6685103	Washer 7	Out of stock	£1.73 £1.44
54	TK6685104	Flywheel Nut 12	Out of stock	£1.76 £1.47
55	TK6684602	Rubber Cap	Out of stock	£1.76 £1.47
56	TK6688398	High Tension Cord 150L	Out of stock	£3.14 £2.62
