Tanaka ECS-330B - Side Case Chain Brake

Description

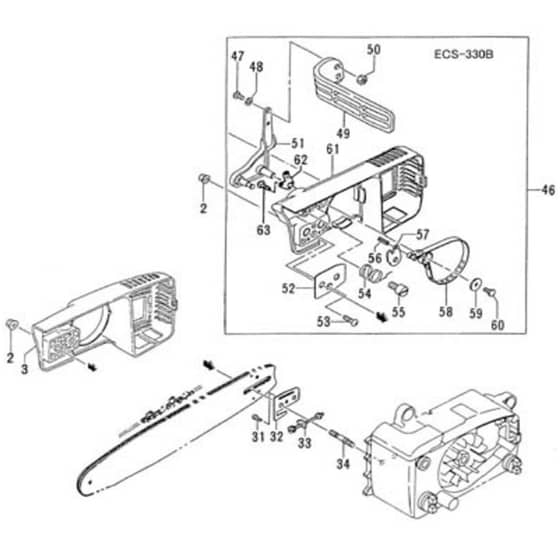

Tanaka ECS-330B Chainsaw - Side Case Chain Brake Parts Diagram

	Part No.	Details
2	TK6685166 Available to backorder	Chain Bar Clamp Nut	£3.04 £2.53
3	TK6686081 Available to backorder	Side Case Comp.	£21.80 £18.17
31	TK6685161 Available to backorder	Screw 4X10	£1.73 £1.44
32	TK6690790 Available to backorder	Plate	£3.04 £2.53
33	TK6687071 Available to backorder	Tension Adjustment Bolt Ass'Y	£3.46 £2.88
34	TK6686804 Available to backorder	Chain Bar Stud Bolt	£3.04 £2.53
47	TK6694891 Available to backorder	Screw 5X18	£1.73 £1.44
48	TK6684662 Available to backorder	S.Washer 5	£1.73 £1.44
49	TK6689747 Available to backorder	Brake Handle	£12.89 £10.74
50	TK6684965 Available to backorder	Hex. Nut 5	£1.39 £1.16
51	TK6689669 Available to backorder	Brake Lever Comp.	£29.42 £24.52
52	TK6690754 Available to backorder	Guide Plate B	£3.04 £2.53
54	TK6689698 Available to backorder	Brake Spring	£3.04 £2.53
55	TK6689760 Available to backorder	Step Bolt A	£6.02 £5.02
56	TK6695268 Available to backorder	Spring Pin 4X12	£1.73 £1.44
57	TK6689690 Available to backorder	Brake Arm 1 - K1720	£3.00 £2.50
57	TK6689694 Available to backorder	Brake Arm 1 K172026	£3.04 £2.53
58	TK6689727 Available to backorder	Brake Belt Comp.	£9.90 £8.25
59	TK6689680 Available to backorder	Brake Shaft Washer	£1.70 £1.42
60	TK6689769 Available to backorder	Step Bolt B	£1.70 £1.42
61	TK6686085 Available to backorder	Side Case Comp.	£36.74 £30.62
62	TK6689647 Available to backorder	Center Spring 1 K172026	£3.04 £2.53
