Tanaka ECS-290B - Carburettor

Name: Tanaka ECS-290B - Carburettor
SKU: ecsecs290bcarburetr-group
Price: 1.48 GBP
Availability: InStock

Part No. ecsecs290bcarburetr-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

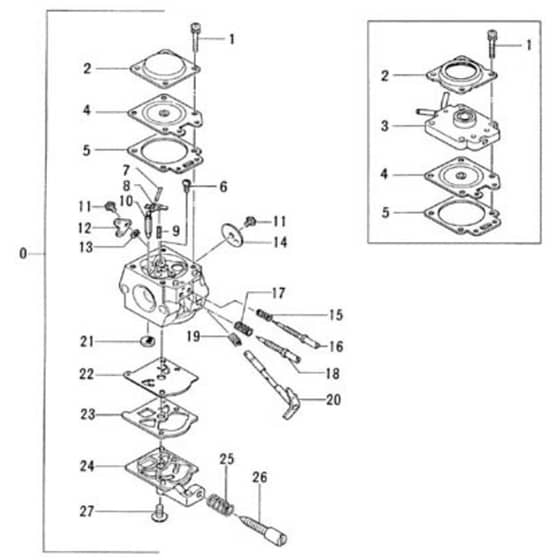

Tanaka ECS-290B Chainsaw - Carburettor Parts Diagram

	Part No.	Details
-1	TK6690592 Available to backorder	Carburetor Ass'Y Wt-65 1 F143502	£103.80 £86.50
1	TK6691310 Available to backorder	Set Screw 4 - F1435	£1.78 £1.48
1	TK6685223 Available to backorder	Set Screw 4 F143502	£1.78 £1.48
2	TK6685222 Available to backorder	Diaphragm Cover 1 F143502	£7.16 £5.97
2	TK6690859 Available to backorder	Diaphragm Cover 1 - F1435	£3.58 £2.98
5	TK6690839 Available to backorder	Diaphragm Gasket 1 - F1435	£3.58 £2.98
6	TK6685218 Available to backorder	Hinge Pin Set Screw	£3.58 £2.98
7	TK6685219 Available to backorder	Hinge Pin	£1.78 £1.48
8	TK6685217 Available to backorder	Valve Hinge	£5.38 £4.48
9	TK6690870 Available to backorder	Valve Spring	£3.58 £2.98
10	TK6691943 Available to backorder	Needle Valve	£9.29 £7.74
11	TK6690793 Available to backorder	Shutter Screw	£1.78 £1.48
13	TK6690960 Available to backorder	Stop Ring	£1.78 £1.48
14	TK6690924 Available to backorder	Throttle Valve	£3.58 £2.98
15	TK6692047 Available to backorder	High.Low Adjust Spring	£1.78 £1.48
16	TK6690714 Available to backorder	Low Adjust Screw	£8.59 £7.16
17	TK6690895 Available to backorder	High Adjust Spring	£1.78 £1.48
18	TK6690691 Available to backorder	High Adjust Screw	£7.51 £6.26
19	TK6690910 Available to backorder	Throttle Spring	£4.55 £3.79
20	TK6690771 Available to backorder	Throttle Shaft Comp.	£13.49 £11.24
21	TK6684700 Available to backorder	Inlet Screen	£3.58 £2.98
22	TK6685213 In stock	Pump Diaphragm	Was £6.92 £5.77 Special Price £4.98 £4.15
23	TK6685212 In stock	Pump Gasket	£3.24 £2.70
24	TK6685211 Available to backorder	Pump Body	£13.49 £11.24
26	TK6685298 Available to backorder	Idle Adjust Screw	£3.58 £2.98
27	TK6685210 Available to backorder	Set Screw	£1.78 £1.48
