Tanaka CS-33EA - Cylinder Assembly

Description

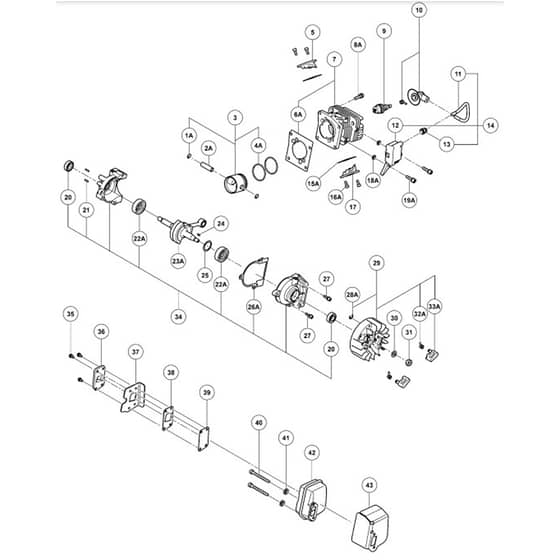

Tanaka CS-33EA Chainsaw - Cylinder Assembly Parts Diagram

	Part No.	Details
1	TK6685326 Available to backorder	(1A) Circlip	£1.34 £1.12
4	TK6685331 Available to backorder	(4A) Piston Ring (Xr1-1856)	£6.02 £5.02
13	TK6684602 Available to backorder	Rubber Cap	£1.70 £1.42
19	TK6698388 Available to backorder	(19A) Hex. Socket Hd. Bolt (W.Washers) M4X18	£1.86 £1.55
20	TK6684607 In stock	Oil Seal Tb 12227	£3.62 £3.02
21	TK6685095 Available to backorder	Needle Roller 2.5X9.8	£1.73 £1.44
22	TK6685328 Available to backorder	(22A) Ball Bearing	£3.98 £3.32
23	TK6698693 Available to backorder	(23A) Crank Shaft	£69.08 £57.57
24	TK6684899 Available to backorder	Woodruff Key 3X13X4.5	£1.70 £1.42
25	TK6685099 Available to backorder	Shim S T0.3	£1.70 £1.42
26	TK6685100 Available to backorder	(26A) Crank Case Packing	£1.73 £1.44
27	TK6684709 Available to backorder	Hex.Hole Bolt M5X20.S	£1.72 £1.43
28	TK6685336 Available to backorder	(28A) Retaining Ring D4	£1.34 £1.12
29	TK6685102 Available to backorder	Magneto Rotor Ass'Y 1 Includ.28.32.	£25.88 £21.57
30	TK6685103 Available to backorder	Bolt Washer M7	£1.73 £1.44
31	TK6685104 Available to backorder	Flywheel Nut	£1.70 £1.42
32	TK6685335 Available to backorder	(32A) Starter Pawl Spring	£1.34 £1.12
33	TK6685334 Available to backorder	(33A) Starter Pawl	£3.52 £2.93
40	TK6685114 Available to backorder	Hex. Socket Hd. Bolt M5X50	£1.73 £1.44
41	TK6684661 Available to backorder	Washer 5	£1.73 £1.44
