Tanaka AST-250-SDH - W004210 - Gear Case

Description

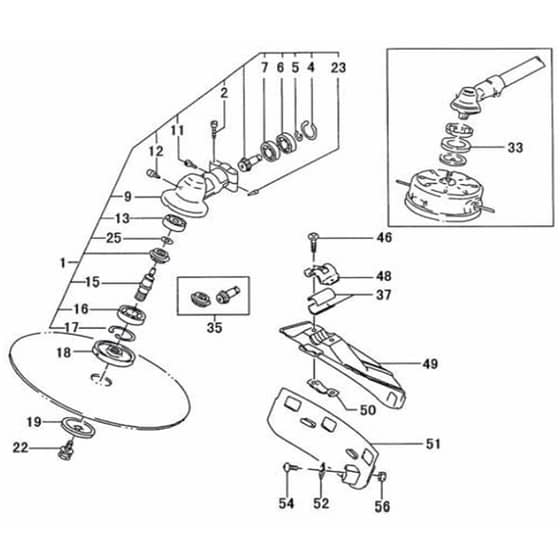

Tanaka AST-250-SDH Brushcutter - Gear Case Parts Diagram

	Part No.	Details
1	TK6688747 Available to backorder	Gear Case Assy 23.9	£109.08 £90.90
2	TK6684709 Available to backorder	Hex. Hole Bolt 5X25.S	£1.78 £1.48
4	TK6684732 Available to backorder	Stop Ring C-24 Inner	£1.78 £1.48
5	TK6695281 Available to backorder	Stop Ring C-9 Outer	£1.78 £1.48
6	TK6684735 Available to backorder	Ball Bearing 609Z St	£7.16 £5.97
7	TK6684734 Available to backorder	Ball Bearing 609	£7.16 £5.97
9	TK6688718 Available to backorder	Gear Case 23.9 Dia.	£34.74 £28.95
11	TK6695042 Available to backorder	Hex. Hole Bolt 5X10	£1.62 £1.35
12	TK6695437 Available to backorder	Plus Head Bolt 8X10	£1.78 £1.48
13	TK6695569 Available to backorder	Ball Bearing 628 St	£7.16 £5.97
15	TK6688932 Available to backorder	Gear Shaft	£19.94 £16.62
16	TK6695554 Available to backorder	Ball Bearing 6201D 32Mm.Od	£9.64 £8.03
17	TK6695295 Available to backorder	Stop Ring C-32 Inner	£1.78 £1.48
18	TK6689031 Available to backorder	Cutter Holder 12X10X1	£18.62 £15.52
19	TK6689048 Available to backorder	Cutter Holder Cap	£7.16 £5.97
22	TK6689062 In stock	Fixing Bolt L.H.	£3.58 £2.98
23	TK6689159 Available to backorder	Gear Case Washer	£1.78 £1.48
25	TK6686453 In stock	Special Washer 1.0	£3.58 £2.98
33	TK6684763 Available to backorder	Winding Protector	£3.58 £2.98
35	TK6688868 In stock	Gear-Pinion Set Spare	£42.85 £35.71
37	TK6690332 Available to backorder	Bracket Spacer	£1.73 £1.44
46	TK6697451 Available to backorder	Hex. Hole Button Screw 6X25S	£0.97 £0.81
48	TK6690294 Available to backorder	Cover Bracket 26 Dia.	£1.78 £1.48
50	TK6684748 Available to backorder	Safety Cover Holder	£3.48 £2.90
51	TK6690372 In stock	Cover Guard	Was £14.78 £12.32 Special Price £10.64 £8.87
52	TK6693386 Available to backorder	Knife	£7.16 £5.97
56	TK6684965 Available to backorder	Hex. Nut 5	£1.54 £1.28
