Tanaka AST-250 - Engine 2

Tanaka AST-250 - Engine 2

Description

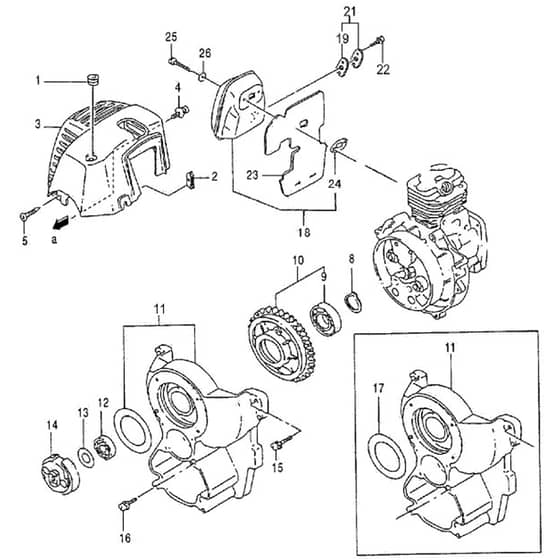

Tanaka AST-250 Brushcutter - Engine 2 Parts Diagram

Ref.		Img.	Part No.	Details
	1		TK6688037 Available to backorder	Secondary Cord Grommet		£1.78 £1.48
	2		TK6688052 Available to backorder	Grommet		£1.45 £1.21
	3		TK6692792 Available to backorder	Muffler Protector		£15.74 £13.12
	5		TK6684636 Available to backorder	Tapping Screw 4.5X16		£1.78 £1.48
	8		TK6695286 Available to backorder	Stop Ring C-17 Outer		£1.78 £1.48
	9		TK6695541 Available to backorder	Ball Bering 6003Zz 35Mm.Od		£12.19 £10.16
	10		TK6693068 Available to backorder	Starter Pulley Comp.		£57.77 £48.14
	11		TK6687001 Available to backorder	Fan Case Comp. Vermilion		£51.48 £42.90
	12		TK6695525 Available to backorder	Ball Bearing #6000Zz 26Mm.Od		£14.28 £11.90
	13		TK6687799 Available to backorder	Propeller Shaft Shim A 1.0		£1.78 £1.48
	13		TK6687789 Available to backorder	Propeller Shaft Shim A 0.20		£1.78 £1.48
	13		TK6687792 Available to backorder	Propeller Shaft Shim A 0.30		£1.78 £1.48
	14		TK6688492 Available to backorder	Clutch Ass'Y		£35.34 £29.45
	15		TK6695421 Available to backorder	Screw 5X20.Ws		£1.45 £1.21
	16		TK6695428 Available to backorder	Screw 5X42.Ws		£1.45 £1.21
	18		TK6692433 Available to backorder	Muffler Set Spare		£40.68 £33.90
	19		TK6692883 Available to backorder	Muffler Special Gasket		£1.78 £1.48
	23		TK6687251 Available to backorder	Heat Shield		£3.58 £2.98
	24		TK6692745 Available to backorder	Muffler Gasket		£1.78 £1.48
	25		TK6685114 Available to backorder	Hex. Hole Bolt 5X50		£1.78 £1.48
	26		TK6684661 Available to backorder	Washer 5		£1.78 £1.48

Description

Tanaka AST-250 Brushcutter - Engine 2 Parts Diagram
