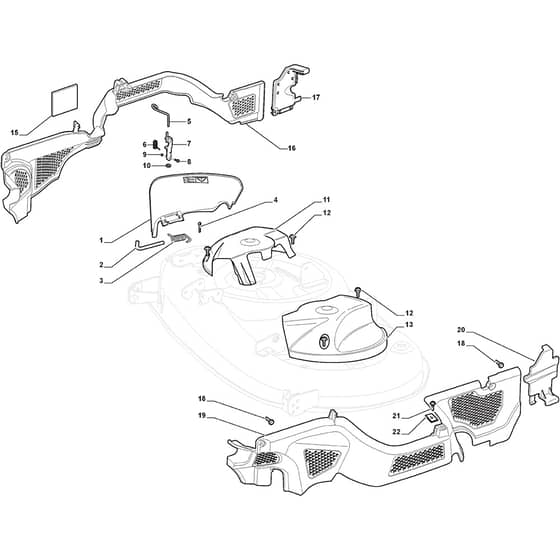

T42M-SD - 2020-2021 - 2T1110483/MC - Mountfield Ride On Mower Belt Protection Diagram

Name: T42M-SD - 2020-2021 - 2T1110483/MC - Mountfield Ride On Mower Belt Protection Diagram
SKU: t42m_sd_2t1110483_mc_belt_protection-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

T42M-SD - 2020-2021 - 2T1110483/MC - Mountfield Ride On Mower Belt Protection Diagram

Description

Mountfield T42M-SD Parts Diagram

Product Name - T42M-SD

Model Year - 2020-2021

Model Type - SD 108

Art.N - 2T1110483/MC

Engine Model - ST 500 Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325600087/2 Available to backorder	Ejection Guard	£29.56 £24.63
2	MO125510073/0 Available to backorder	Fulcrum Pin	£7.67 £6.39
3	MO125430242/1 In stock	Spring	£3.38 £2.82
4	MO112141418/0 Available to backorder	Cotter Pin	£1.55 £1.29
5	MO125318355/0 Available to backorder	Fulcrum Pin	£6.05 £5.04
6	MO125430288/0 Available to backorder	Spring	£9.58 £7.98
7	MO325774719/0 Available to backorder	Fulcrum Clamp	£6.20 £5.17
8	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
11	MO325600088/0 Available to backorder	Right Belt Protection Carter	£22.04 £18.37
12	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
13	MO325600089/1 Available to backorder	Left Belt Protection	£22.31 £18.59
16	MO325060154/0 Available to backorder	Case	£32.38 £26.98
17	MO325600082/0 Available to backorder	Guard	£3.67 £3.06
18	MO125943011/0 Available to backorder	Screw	£9.50 £7.92
19	MO325060155/0 Available to backorder	Case	£32.38 £26.98
20	MO325600083/0 Available to backorder	Guard	£3.67 £3.06
21	MO127943051/0 Available to backorder	Screw	£1.74 £1.45
22	MO112437506/0 Available to backorder	Double Plate	£2.53 £2.11
