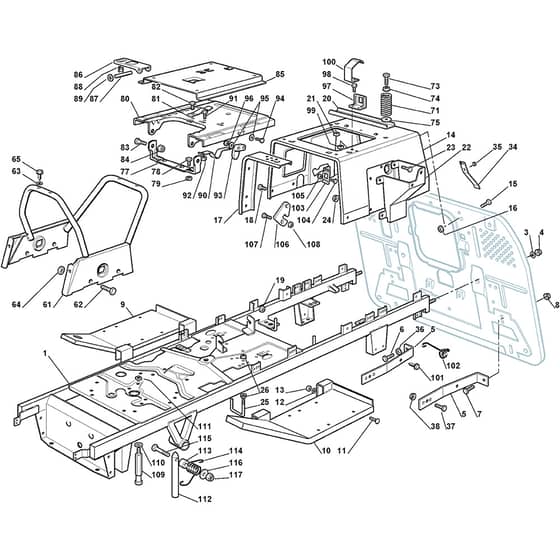

T40M - 2008 - 299911436/BQ - Mountfield Ride On Mower Frame Diagram

Description

Mountfield T40M Parts Diagram

Product Name - T40M

Model Year - 2008

Model Type - TCP 102

Art.N - 299911436/BQ

Engine Model -

	Part No.	Details
3	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
4	MO112295200/0 In stock	Nut	£1.39 £1.16
5	MO325774273/2 Available to backorder	Stiffening From 01-9-2003	£8.86 £7.38
6	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
7	MO112793102/0 In stock	Screw	£1.55 £1.29
8	MO112293201/0 In stock	Nut	£1.70 £1.42
9	MO382510041/2 Available to backorder	Right Footboard Support From 01-9-2008	£80.83 £67.36
10	MO382510043/2 Available to backorder	Left Footboard Support From 01-9-2003	£80.83 £67.36
11	MO112815245/0 Available to backorder	Screw	£1.55 £1.29
12	MO112523040/0 In stock	Washer	£1.55 £1.29
13	MO112154510/0 In stock	Nut	£1.55 £1.29
14	MO325785133/5 Available to backorder	Seat Support From 01-9-2008	£68.99 £57.49
15	MO112791011/0 Available to backorder	Screw	£1.39 £1.16
16	MO112292102/0 In stock	Nut	£1.70 £1.42
17	MO325650065/1 Available to backorder	Stiffening	£9.28 £7.73
