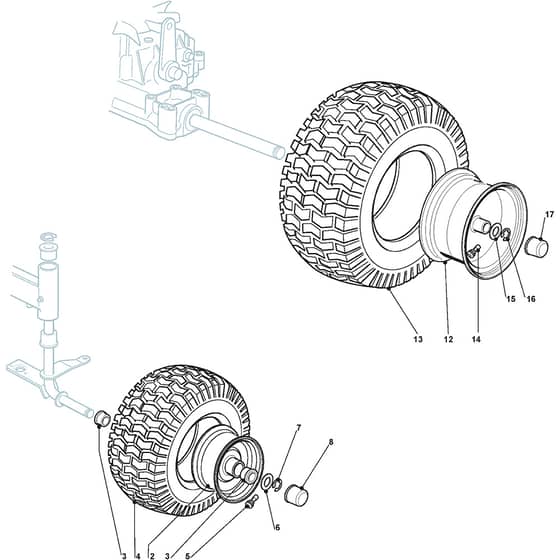

T40H - 2015-2019 - 2T1730436/BQ - Mountfield Ride On Mower Wheels Diagram

Name: T40H - 2015-2019 - 2T1730436/BQ - Mountfield Ride On Mower Wheels Diagram
SKU: t40h_2t1730436_bq_wheels-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

T40H - 2015-2019 - 2T1730436/BQ - Mountfield Ride On Mower Wheels Diagram

Description

Mountfield T40H Parts Diagram

Product Name - T40H

Model Year - 2015-2019

Model Type - NJTP 102 Hydro

Art.N - 2T1730436/BQ

Engine Model - Mountfield 7750 452 cc

Be the first to review this product

0 product questions

	Part No.	Details
3	MO125122200/2 In stock	Bearing	£11.82 £9.85
4	MO127590051/0 In stock	Tyre 15X6.00-6 P512 (Wanda) 15X6.00-6 PR2 TL P512 WANDA From 01-9-2015	£51.95 £43.29
4	MO125590020/0 Available to backorder	Tyre 15X6.00-6 P519 (Wanda) 15X6.00-6 PR2 TL P519 WANDA	£66.37 £55.31
4	MO382680007/1 Available to backorder	Tyre 15X6.00-6 Wanda 15x6.00-6 WANDA To 31-8-2015	£128.10 £106.75
7	MO112001000/0 Available to backorder	Circlip Ø15	£1.82 £1.52
12	MO182000592/0 Available to backorder	Rear Wheel Rimm	£109.79 £91.49
13	MO125590015/0 Available to backorder	Tyre 18X8.50-8 P332 (Wanda) 18X8.50-8 WANDA	£94.21 £78.51
13	MO382680067/0 Available to backorder	Tyre 18X8.50-8 P512 (Wanda) 18X8.50-8 PR2 TL P512 WANDA From 01-9-2015	£188.53 £157.11
14	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
15	MO125670005/2 In stock	Washer From 01-9-2014	£4.08 £3.40
16	MO112001010/0 Available to backorder	Circlip	£1.82 £1.52
17	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
