T40H - 2015-2019 - 2T1730436/BQ - Mountfield Ride On Mower Engine - -ST. TRE0801 Diagram

Name: T40H - 2015-2019 - 2T1730436/BQ - Mountfield Ride On Mower Engine - -ST. TRE0801 Diagram
SKU: t40h_2t1730436_bq_engine_st_tre0801-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

T40H - 2015-2019 - 2T1730436/BQ - Mountfield Ride On Mower Engine - -ST. TRE0801 Diagram

Description

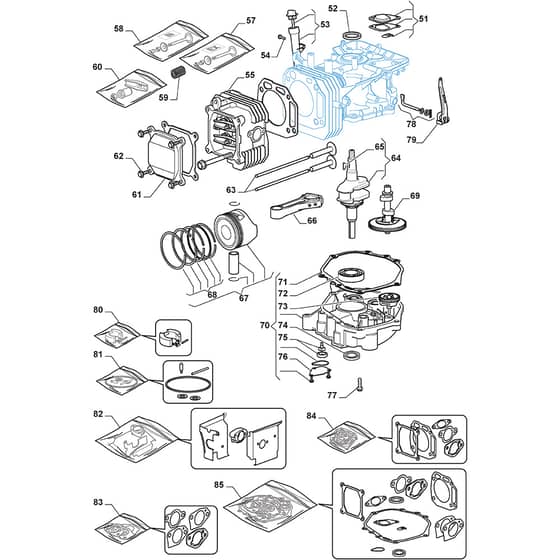

Mountfield T40H Parts Diagram

Product Name - T40H

Model Year - 2015-2019

Model Type - NJTP 102 Hydro

Art.N - 2T1730436/BQ

Engine Model - Mountfield 7750 452 cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550446/0 Available to backorder	Gasket Assy	£21.47 £17.89
52	MO118551418/0 Available to backorder	Oil Seal	£11.96 £9.97
53	MO118550205/2 Available to backorder	Oil Filler Assy	£23.99 £19.99
54	MO112674701/0 Available to backorder	Screw	£1.55 £1.29
55	MO118550530/0 Available to backorder	Cylinder Head Assy	£260.44 £217.03
57	MO118550532/0 In stock	Exhaust Valve Assy	Was £42.85 £35.71 Special Price £28.28 £23.57
58	MO118550531/0 Available to backorder	Intake Valve Assy	£42.23 £35.19
59	MO118550529/0 Available to backorder	Spring Valve	£6.05 £5.04
60	MO118550533/0 Available to backorder	Valve Arm	£10.00 £8.33
62	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
63	MO118550242/1 Available to backorder	Push Rods Assy	£5.65 £4.71
64	MO118550232/0 Available to backorder	Crankshaft	£197.09 £164.24
65	MO118550288/0 Available to backorder	Woodruff Key	£6.20 £5.17
66	MO118550231/1 Available to backorder	Connecting Rod Assy	£56.32 £46.93
68	MO118550510/0 Available to backorder	Piston. Ring Set	£10.31 £8.59
69	MO118550243/0 Available to backorder	Camshaft Assy	£111.91 £93.26
70	MO118550445/0 Available to backorder	Crankcase Cover Assy	£190.04 £158.37
71	MO118550355/1 Available to backorder	Crankcase Gasket	£16.88 £14.07
72	MO118550227/0 Available to backorder	Ball Bearing	£21.40 £17.83
73	MO118550347/0 Available to backorder	Speed Governor Assy	£19.70 £16.42
75	MO118550224/1 Available to backorder	Oil Pump Assy	£20.90 £17.42
76	MO118550223/0 Available to backorder	Oli Pump Cover	£5.64 £4.70
77	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
78	MO118550226/0 Available to backorder	Shaft. Governor Arm Assy	£10.84 £9.03
80	MO118550440/0 Available to backorder	Kit Repair. Carburettor	£10.42 £8.68
81	MO118550442/0 Available to backorder	Carburettor Gasket Set	£15.78 £13.15
82	MO118550220/0 Available to backorder	Engine Guard Assy	£32.38 £26.98
83	MO118550217/1 Available to backorder	Gasket Set	£10.84 £9.03
84	MO118550535/0 In stock	Cylinder Head Gasket Set	£36.56 £30.47
85	MO118550534/0 Available to backorder	Engine Gasket Kit	£102.76 £85.63
