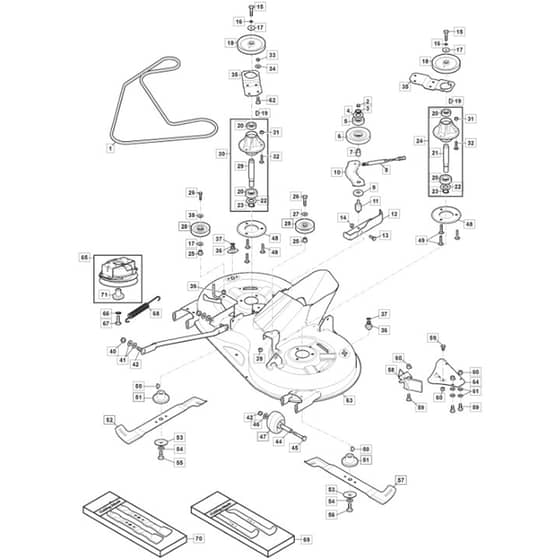

T38 M - 2020-2022 - 2T2510483/MC - Mountfield Ride On Mower Clutch Diagram

Name: T38 M - 2020-2022 - 2T2510483/MC - Mountfield Ride On Mower Clutch Diagram
SKU: t38_m_2t2510483_mc_clutch-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

T38 M - 2020-2022 - 2T2510483/MC - Mountfield Ride On Mower Clutch Diagram

Description

Mountfield T38 M Parts Diagram

Product Name - T38 M

Model Year - 2020-2022

Model Type - MP 98

Art.N - 2T2510483/MC

Engine Model - ST 450 Powered by STIGA

Be the first to review this product

0 product questions

	Part No.	Details
1	MO135061509/0LC In stock	Drive Belt	£75.46 £62.88
2	MO112293201/0 In stock	Nut	£1.69 £1.41
3	MO112524010/0 Available to backorder	Washer	£1.82 £1.52
4	MO112610800/0 Available to backorder	Seeger	£1.69 £1.41
5	MO119216048/0 In stock	Bearing	£18.31 £15.26
6	MO125601595/0 In stock	Pulley	£35.20 £29.33
7	MO125160052/0 Available to backorder	Spacer	£2.95 £2.46
8	MO382004618/0 In stock	Wire	£22.81 £19.01
9	MO125040635/0 In stock	Bushing	£4.19 £3.49
10	MO325318343/0 Available to backorder	Lever	£13.58 £11.32
11	MO125160049/0 Available to backorder	Spacer	£7.02 £5.85
12	MO325785391/0 Available to backorder	Bracket	£21.89 £18.24
13	MO112818690/0 Available to backorder	Screw	£1.61 £1.34
14	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
15	MO112793102/0 In stock	Screw	£1.55 £1.29
16	MO112540260/0 Available to backorder	Washer	£1.55 £1.29
70	MO1134-9234-01 In stock	Mulching Blades Stiga packed into 182004364.0 + 182004346.0	£47.10 £39.25
