T35M - 2011-2013 - 2T0320436/BQ - Mountfield Ride On Mower Grasscatcher Diagram

Description

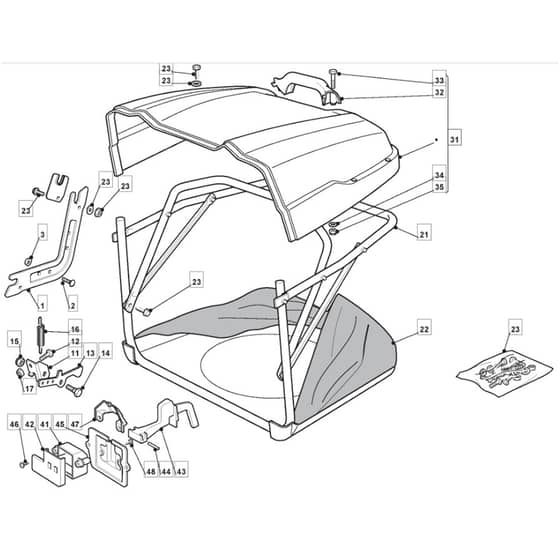

Mountfield T35M Parts Diagram

Product Name - T35M

Model Year - 2011-2013

Model Type - NJTP 92

Art.N - 2T0320436/BQ

	Part No.	Details
1	MO325785275/0 Available to backorder	Support	£11.95 £9.96
2	MO112818690/0 In stock	Screw	£1.55 £1.29
3	MO112293201/0 In stock	Nut	£1.70 £1.42
11	MO325755031/2 Available to backorder	Bracket	£5.06 £4.22
12	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
13	MO325774315/1 Available to backorder	Bracket	£3.92 £3.27
14	MO125510080/2 Available to backorder	Pin	£1.39 £1.16
15	MO112292102/0 In stock	Nut	£1.70 £1.42
16	MO122450432/0 Available to backorder	Spring	£1.97 £1.64
17	MO112154330/0 In stock	Nut	£1.55 £1.29
21	MO382800110/0 Available to backorder	Front Frame	£169.31 £141.09
22	MO182105974/0 Available to backorder	Grasscatcher	£139.38 £116.15
23	MO382180120/0 Available to backorder	Outfit. Screws	£52.08 £43.40
31	MO382110273/1 Available to backorder	Black Grass-Catcher Cover From 01-9-2009	£68.75 £57.29
32	MO127394000/0 Available to backorder	Handle	£15.76 £13.13
33	MO112789020/0 Available to backorder	Screw	£1.62 £1.35
34	MO112523020/0 In stock	Washer	£1.55 £1.29
41	MO125600041/0 Available to backorder	Grassc.Full Micro Protection Tcj-F	£3.90 £3.25
42	MO125600042/0 Available to backorder	Grasscatcher Micro Prot Cover	£7.62 £6.35
43	MO125318124/0 Available to backorder	Full Grassc. Microswtich Cover	£1.97 £1.64
44	MO112400030/0 Available to backorder	Pin	£1.84 £1.53
45	MO325785272/1 Available to backorder	Micro Protection	£2.22 £1.85
46	MO112728440/0 Available to backorder	Screw	£1.39 £1.16
47	MO125600048/0 Available to backorder	Empty Micro Grassc.Protection Cover	£1.55 £1.29
48	MO112735110/0 Available to backorder	Flanged Self-Tap Screw 4.8 X 13	£1.63 £1.36
