T35H - 2008 - 299964336/BQ - Mountfield Ride On Mower Seat Diagram

Name: T35H - 2008 - 299964336/BQ - Mountfield Ride On Mower Seat Diagram
SKU: t35h_299964336_bq_seat-group
Price: 1.29 GBP
Availability: InStock

Part No. t35h_299964336_bq_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

T35H - 2008 - 299964336/BQ - Mountfield Ride On Mower Seat Diagram

Description

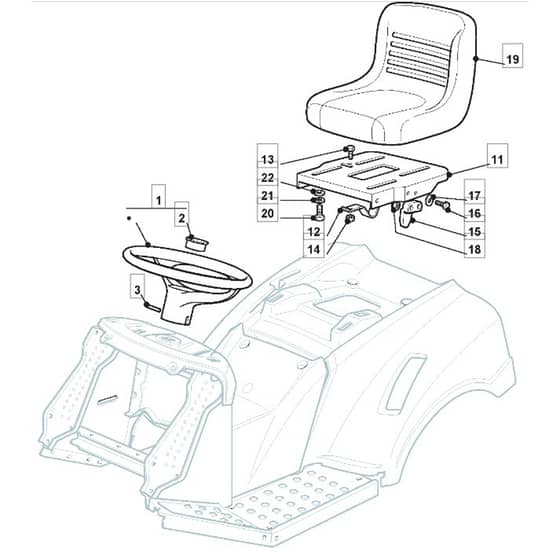

Mountfield T35H Parts Diagram

Product Name - T35H

Model Year - 2008

Model Type - NJTP 92 Hydro

Art.N - 299964336/BQ

	Part No.	Details
1	MO125961217/1 Available to backorder	Steering Wheel	£98.56 £82.13
2	MO325120230/0 Available to backorder	Cover	£3.10 £2.58
3	MO112620299/0 Available to backorder	Elastic Pin	£1.84 £1.53
11	MO325547033/1 Available to backorder	Seat Plate	£39.42 £32.85
12	MO125430223/2 Available to backorder	Spring	£6.19 £5.16
13	MO112789000/0 Available to backorder	Screw	£1.63 £1.36
14	MO112154330/0 In stock	Nut	£1.55 £1.29
15	MO327063021/1 Available to backorder	Cam	£7.86 £6.55
16	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
17	MO112523020/0 In stock	Washer	£1.55 £1.29
19	MO125722471/0 In stock	Seat	£190.04 £158.37
20	MO112793101/0 In stock	Screw	£1.55 £1.29
21	MO112583500/0 In stock	Grower	£1.55 £1.29
22	MO112523060/0 In stock	Washer M8 8.4 X 24 X 2	£1.55 £1.29
