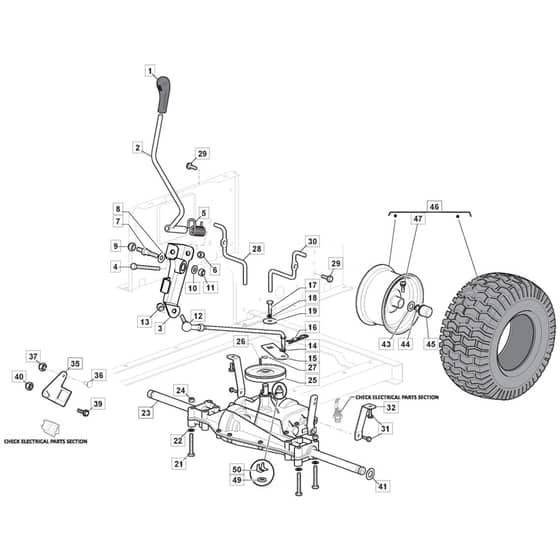

T30M - 2012-2019 - 2T2010436/BQ - Mountfield Ride On Mower Transmission Diagram

Name: T30M - 2012-2019 - 2T2010436/BQ - Mountfield Ride On Mower Transmission Diagram
SKU: t30m_2t2010436_bq_transmission-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

T30M - 2012-2019 - 2T2010436/BQ - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield T30M Parts Diagram

Product Name - T30 M

Model Year - 2012-2019

Model Type - MP 84

Art.N - 2T2010436/BQ

Engine Model - Mountfield 7500

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325394532/0 Available to backorder	Knob	£5.21 £4.34
2	MO382318257/0 Available to backorder	Lever	£17.33 £14.44
3	MO382774259/1 Available to backorder	Clamp	£13.37 £11.14
4	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
5	MO125430226/0 Available to backorder	Spring	£2.26 £1.88
7	MO125510035/0 In stock	Pin	£3.67 £3.06
8	MO322672151/0 Available to backorder	Antifriction Washer	£1.82 £1.52
10	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
11	MO112155010/0 Available to backorder	Nut	£2.12 £1.77
12	MO382000567/1 Available to backorder	Gear Rod Assy	£25.80 £21.50
13	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
14	MO112521340/0 Available to backorder	Washer	£1.40 £1.17
15	MO325318235/0 Available to backorder	Lever	£2.53 £2.11
16	MO112141418/0 Available to backorder	Cotter Pin	£1.55 £1.29
17	MO112735520/0 Available to backorder	Screw	£1.55 £1.29
18	MO112540040/0 Available to backorder	Washer	£1.40 £1.17
19	MO322680009/0 Available to backorder	Washer	£1.82 £1.52
21	MO112691600/0 Available to backorder	Screw	£1.82 £1.52
22	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
23	MO118400922/1 Available to backorder	Transmission Mst 205-535H To 10-3-2022	£1,405.63 £1,171.36
23	MO118400910/4 Available to backorder	Transmission Mst 205-591 From 11-3-2022	£509.23 £424.36
24	MO112155000/0 In stock	Nut	£1.55 £1.29
25	MO182601509/0 Available to backorder	Pulley	£76.72 £63.93
26	MO112139430/0 In stock	Key	£1.97 £1.64
27	MO112608950/0 Available to backorder	Seeger	£1.55 £1.29
28	MO125270329/0 Available to backorder	Belt Guide	£4.37 £3.64
29	MO112735599/0 Available to backorder	Screw	£1.55 £1.29
31	MO125943009/0 Available to backorder	Screw	£1.62 £1.35
32	MO325785315/0 Available to backorder	Support	£5.64 £4.70
35	MO325785483/1 Available to backorder	Support From 01-9-2021	£4.37 £3.64
35	MO325785483/0 Available to backorder	Support To 31-8-2021	£4.22 £3.52
36	MO112815200/0 Available to backorder	Screw	£1.55 £1.29
37	MO112154510/0 In stock	Nut	£1.55 £1.29
39	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
41	MO125670005/2 In stock	Washer	£4.08 £3.40
44	MO112001010/0 Available to backorder	Benzing Ring	£1.82 £1.52
45	MO322110233/0 In stock	Hub Cover Standard Black	£1.70 £1.42
46	MO382680104/0 Available to backorder	Wheel Assy	£160.28 £133.57
47	MO125950000/0 Available to backorder	Valve	£5.35 £4.46
49	MO112540221/0 Available to backorder	Washer	£4.66 £3.88
50	MO133800001/0 Available to backorder	Male Faston Terminal 250 Gmg40164.51.72.	£1.40 £1.17
