SYNERGY 40 - 2002 - 192016007 - Stiga Chainsaw Chainsaw Diagram

Description

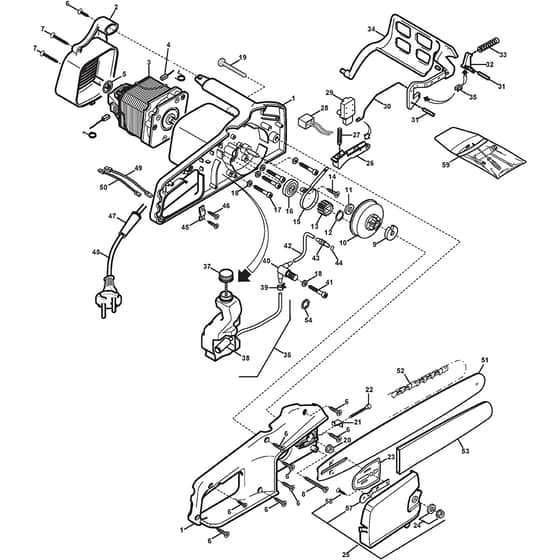

Stiga SYNERGY 40 Parts Diagram

Product Name - SYNERGY 40

Model Year - 2002

Model Type - Energy E 1.8

Art.N - 192016007

Engine Model -

	Part No.	Details
3	MO8251900 Available to backorder	Electric Motor	£121.07 £100.89
9	MO3614300 Available to backorder	Side Plate	£5.82 £4.85
10	MO8562940 Available to backorder	Gear Assy	£25.39 £21.16
12	MO3353020 Available to backorder	Seeger Ring	£1.39 £1.16
15	MO3614690 Available to backorder	Brake Band From 01-9-2001	£10.98 £9.15
17	MO2135040 Available to backorder	Screw	£1.38 £1.15
18	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
20	MO2670120 Available to backorder	Nut	£1.39 £1.16
22	MO2122270 Available to backorder	Screw	£1.33 £1.11
30	MO3655320 Available to backorder	Tie Rod	£5.68 £4.73
33	MO3653720 Available to backorder	Brake Spring	£3.38 £2.82
35	MO4252020 Available to backorder	Chain Brake Link Assy	£5.20 £4.33
37	MO4252010 Available to backorder	Tank Cap To 31-8-2001	£3.52 £2.93
38	MO8642570 Available to backorder	Filter Intank Assy With Pipe	£9.01 £7.51
39	MO3320170 Available to backorder	Hose Clamp	£1.33 £1.11
41	MO2123030 Available to backorder	Screw	£1.33 £1.11
42	MO3786010 Available to backorder	Oil Tube	£3.66 £3.05
51	MO123900206/0 Available to backorder	Bar 16Inch	£41.81 £34.84
53	MO4181307 Available to backorder	Chain Cover 16Inch	£6.05 £5.04
58	MO2123060 Available to backorder	Screw	£1.33 £1.11
