SWS 600 GE - 2020-2023 - 219602532/ST1 - Stiga Sweeper Transmission Diagram

Description

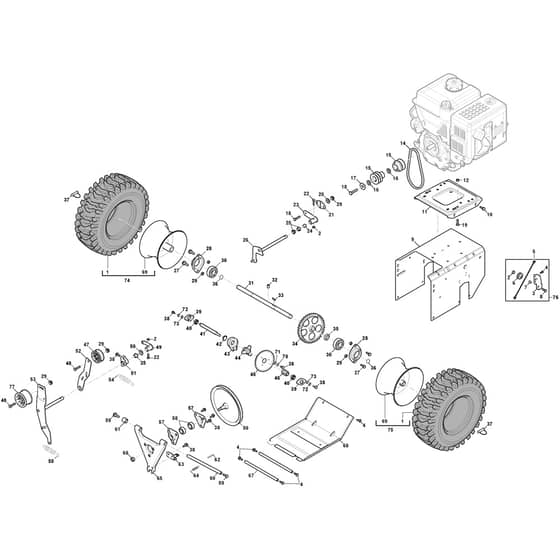

Stiga SWS 600 GE Parts Diagram

Product Name - SWS 600 GE

Model Year - 2020-2023

Model Type - SWR 2604 S

Art.N - 219602532/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO112154510/0 In stock	Nut	£1.55 £1.29
3	MO118820753/0 Available to backorder	Pulley Support	£5.06 £4.22
4	MO112790781/0 In stock	Screw	£1.55 £1.29
5	MO118820299/0 Available to backorder	Wire	£7.39 £6.16
9	MO118820754/0 Available to backorder	Transmission Case Ass.Y	£83.06 £69.22
10	MO112793102/0 In stock	Screw	£1.55 £1.29
11	MO118820149/0 Available to backorder	Engine Plate - Grey	£33.79 £28.16
12	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
14	MO118820755/0 Available to backorder	Drive Belt	£48.48 £40.40
15	MO118820756/0 Available to backorder	Drive Pulley	£4.22 £3.52
16	MO118820262/0 Available to backorder	Washer	£1.69 £1.41
17	MO9699-0109-02 Available to backorder	Washer	£2.40 £2.00
19	MO112691100/0 Available to backorder	Screw	£1.55 £1.29
20	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
21	MO118820263/0 Available to backorder	Gear Adjuster	£1.97 £1.64
22	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
23	MO118820757/0 Available to backorder	Gear Connector	£8.21 £6.84
24	MO118820265/0 Available to backorder	Spacer	£1.33 £1.11
25	MO1811-3113-01 Available to backorder	Plastic Bushing	£1.82 £1.52
26	MO118820308/0 Available to backorder	Shift Fork	£9.65 £8.04
28	MO1811-3115-01 Available to backorder	Bearing Housing	£9.72 £8.10
29	MO112155000/0 In stock	Nut	£1.55 £1.29
30	MO118820121/0 Available to backorder	Ball Bearing	£12.82 £10.68
31	MO118820124/0 Available to backorder	Driving Shaft	£36.59 £30.49
32	MO112645710/0 Available to backorder	Elastic Pin 6x32	£2.12 £1.77
33	MO118820125/0 Available to backorder	Key 6x6x22	£1.40 £1.17
34	MO118820222/0 Available to backorder	Gear	£46.46 £38.72
35	MO118820122/0 Available to backorder	Sleeve	£3.47 £2.89
36	MO112609260/0 Available to backorder	Seeger	£1.82 £1.52
37	MO118820379/0 Available to backorder	Fixing Pin	£4.08 £3.40
38	MO112791213/1 In stock	Screw	£1.55 £1.29
39	MO118820223/0 Available to backorder	Inner Shaft Seat	£6.05 £5.04
40	MO118820152/0 Available to backorder	Ball Bearing	£9.28 £7.73
41	MO118820224/0 Available to backorder	Hexagon Shaft	£12.67 £10.56
43	MO118820312/0 Available to backorder	Shift Bearing	£27.31 £22.76
44	MO118820634/0 Available to backorder	Rubber Wheel Seat	£14.80 £12.33
45	MO118820635/1 Available to backorder	Clutch Disc With Rubber From S.N 25FC4STH000001	£53.50 £44.58
46	MO118820225/0 Available to backorder	Gear	£10.56 £8.80
47	MO1811-3064-01 Available to backorder	Small Tension Pulley	£15.78 £13.15
48	MO112793701/0 Available to backorder	Screw	£1.49 £1.24
49	MO118820334/0 Available to backorder	Tensioner	£6.76 £5.63
50	MO112530150/0 Available to backorder	Spring Washer	£1.36 £1.13
53	MO118820226/0 Available to backorder	Tension Assy	£18.43 £15.36
54	MO1811-3118-01 Available to backorder	Spring	£3.52 £2.93
55	MO118820343/0 Available to backorder	Brake Spring	£3.52 £2.93
56	MO118820339/0 Available to backorder	Pulley	£35.20 £29.33
57	MO1811-3116-01 Available to backorder	Bearing Housing	£3.94 £3.28
58	MO118820340/0 Available to backorder	Ball Bearing 6002	£6.05 £5.04
59	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
60	MO1811-3125-01 Available to backorder	Strut	£8.74 £7.28
62	MO118820348/0 Available to backorder	Pin	£1.97 £1.64
64	MO118820349/0 Available to backorder	Spring	£1.97 £1.64
65	MO118820229/0 Available to backorder	Friction Disc Support	£22.51 £18.76
66	MO112156603/0 Available to backorder	Nut	£1.55 £1.29
68	MO118820758/0 Available to backorder	Bottom Plate For Transmission Box	£32.38 £26.98
69	MO118820759/0 Available to backorder	Rim	£73.20 £61.00
70	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
72	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
73	MO112582100/0 Available to backorder	Grower	£1.55 £1.29
74	MO118821113/0 Available to backorder	Complete Right Wheel	£126.70 £105.58
75	MO118821114/0 Available to backorder	Complete Left Wheel	£126.70 £105.58
76	MO118821109/0 Available to backorder	Pulley Seat Assy	£22.25 £18.54
77	MO118821213/0 Available to backorder	Big Tension Pulley	£14.00 £11.67
