SWS 600 GE - 2020-2023 - 219602532/ST1 - Stiga Sweeper Body Machine Diagram

Name: SWS 600 GE - 2020-2023 - 219602532/ST1 - Stiga Sweeper Body Machine Diagram
SKU: sws_600_ge_219602532_st1_body_machine-group
Price: 1.11 GBP
Availability: InStock

Part No. sws_600_ge_219602532_st1_body_machine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SWS 600 GE - 2020-2023 - 219602532/ST1 - Stiga Sweeper Body Machine Diagram

Description

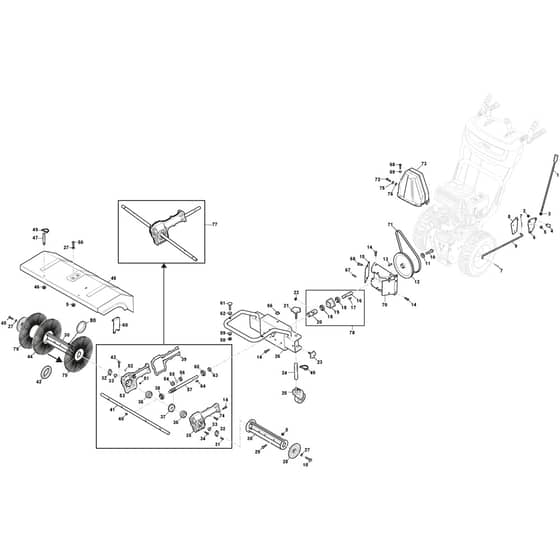

Stiga SWS 600 GE Parts Diagram

Product Name - SWS 600 GE

Model Year - 2020-2023

Model Type - SWR 2604 S

Art.N - 219602532/ST1

Engine Model -

	Part No.	Details
1	MO118820728/0 Available to backorder	Direction Rod	£9.92 £8.27
2	MO112154510/0 In stock	Nut	£1.55 £1.29
3	MO112293200/0 In stock	Nut	£1.55 £1.29
4	MO118820368/0 Available to backorder	Pin	£5.22 £4.35
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO118820369/0 Available to backorder	Welded Direction Plate	£8.00 £6.67
7	MO1811-3080-01 Available to backorder	Cotter Pin	£1.97 £1.64
8	MO118820729/0 Available to backorder	Welded Fixing Plate	£11.12 £9.27
9	MO118820730/0 Available to backorder	Direction Rod	£8.45 £7.04
10	MO118821136/0 Available to backorder	Screw	£1.84 £1.53
12	MO118820253/0 Available to backorder	Pulley	£12.53 £10.44
13	MO118820252/0 Available to backorder	Key	£1.97 £1.64
14	MO112793102/0 In stock	Screw	£1.55 £1.29
15	MO118820373/0 Available to backorder	Plate	£3.79 £3.16
19	MO118820377/0 Available to backorder	Bearing Housing	£12.67 £10.56
20	MO118821090/0 Available to backorder	Gimbal	£99.73 £83.11
21	MO118820731/0 Available to backorder	Fixing Knob Screw (M10)	£7.74 £6.45
22	MO112295200/0 In stock	Nut	£1.39 £1.16
23	MO118820732/0 Available to backorder	Fixing Knob Screw (M8)	£6.05 £5.04
24	MO118820733/0 Available to backorder	Wheel Shaft	£11.12 £9.27
25	MO118820381/0 Available to backorder	Sweeper Support Wheel	£26.18 £21.82
26	MO118820735/0 Available to backorder	Worm Housing Fixing Plate	£123.89 £103.24
27	MO112523060/0 In stock	Washer	£1.55 £1.29
28	MO118820383/0 Available to backorder	Plate	£7.02 £5.85
29	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
30	MO118820737/0 Available to backorder	Brush Fixing Plate	£23.23 £19.36
32	MO118820738/0 Available to backorder	Oil Cap	£1.33 £1.11
33	MO1811-3143-01 Available to backorder	Sealing Ring	£5.34 £4.45
34	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
35	MO118820739/0 Available to backorder	Right Housing	£45.04 £37.53
36	MO118820740/0 Available to backorder	Ball Bearing	£11.71 £9.76
37	MO118820386/0 Available to backorder	Worm	£71.06 £59.22
38	MO118820751/0 Available to backorder	Ball Bearing	£15.90 £13.25
39	MO118820741/0 Available to backorder	Gasket	£12.67 £10.56
40	MO1811-3144-01 Available to backorder	Key	£2.11 £1.76
41	MO118820579/0 Available to backorder	Transmission Shaft (600)	£48.98 £40.82
43	MO118820391/0 Available to backorder	Brush Pad	£4.24 £3.53
44	MO118820392/0 In stock	Straight Brush Straight	£13.81 £11.51
45	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
46	MO9739-1031-22 In stock	Nut	£1.97 £1.64
47	MO118820393/0 Available to backorder	Connector	£9.58 £7.98
48	MO118820742/0 Available to backorder	Brush Cover	£118.26 £98.55
49	MO118820379/0 Available to backorder	Fixing Pin	£4.08 £3.40
53	MO118820746/0 Available to backorder	Left Housing	£45.04 £37.53
54	MO118820158/0 Available to backorder	Ball Bearing	£8.45 £7.04
55	MO112609260/0 In stock	Seeger	£1.84 £1.53
56	MO118820399/0 Available to backorder	Seal Ring	£5.34 £4.45
57	MO118820747/0 Available to backorder	Worm Shaft	£80.22 £66.85
58	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
59	MO118820041/0 Available to backorder	Nut	£2.11 £1.76
60	MO118820748/0 Available to backorder	Support	£6.77 £5.64
61	MO112793850/0 Available to backorder	Screw	£1.55 £1.29
62	MO122671651/0 In stock	Washer	£1.97 £1.64
64	MO118820400/0 Available to backorder	Key	£1.79 £1.49
65	MO1811-3150-01 Available to backorder	Ball Bearing	£9.42 £7.85
66	MO118820749/0 Available to backorder	Small Tensioner Pad	£2.53 £2.11
67	MO118801147/0 Available to backorder	Pin	£1.70 £1.42
68	MO112790781/0 In stock	Screw	£1.55 £1.29
69	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
70	MO118820402/0 Available to backorder	Bearing Fixing Plate	£154.86 £129.05
71	MO118820750/0 Available to backorder	Belt	£36.54 £30.45
72	MO112792611/0 In stock	Screw	£1.55 £1.29
73	MO118820404/0 Available to backorder	Belt Cover	£49.26 £41.05
74	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
75	MO112521331/0 Available to backorder	Washer	£1.55 £1.29
76	MO112582100/0 Available to backorder	Grower	£1.63 £1.36
77	MO118820786/0 Available to backorder	Gear Box Assy	£295.63 £246.36
79	MO118820821/0 Available to backorder	Folded Brush Folded	£13.50 £11.25
80	MO118821406/0 Available to backorder	Internal Brush Pad	£1.87 £1.56
