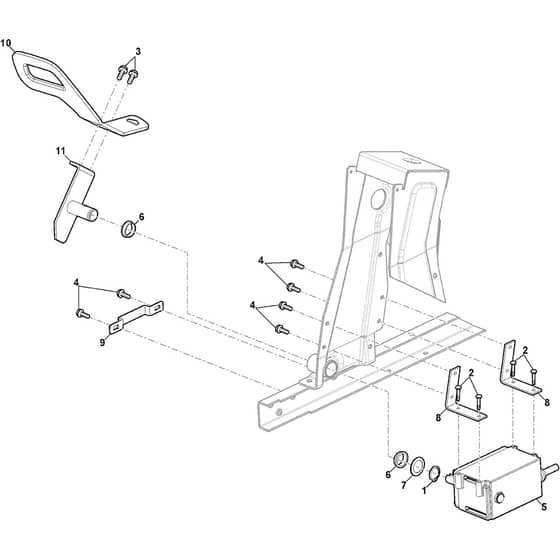

Swift 372e - 2022-2025 - 2T0250481/ST1W - Stiga Ride On Mower Drive Controls Diagram

Name: Swift 372e - 2022-2025 - 2T0250481/ST1W - Stiga Ride On Mower Drive Controls Diagram
SKU: swift_372e_2t0250481_st1w_drive_controls-group
Price: 1.29 GBP
Availability: InStock

Part No. swift_372e_2t0250481_st1w_drive_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Swift 372e - 2022-2025 - 2T0250481/ST1W - Stiga Ride On Mower Drive Controls Diagram

Description

Stiga Swift 372e Parts Diagram

Product Name - Swift 372e

Model Year - 2022-2025

Model Type - R72 LI 48 V2

Art.N - 2T0250481/ST1W

Engine Model -

	Part No.	Details
1	MO112609255/0 Available to backorder	Seeger	£1.55 £1.29
2	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
3	MO9893-0616-16 Available to backorder	Screw	£2.22 £1.85
4	MO112735599/0 In stock	Screw	£1.55 £1.29
5	MO118361049/0 Available to backorder	Pedal Sensor	£120.37 £100.31
6	MO127047022/0 Available to backorder	Bushing	£8.22 £6.85
7	MO322672153/0 Available to backorder	Antifriction Washer	£1.55 £1.29
8	MO327772277/0 Available to backorder	Pedal Sensor Fixing Bracket	£6.32 £5.27
9	MO327772279/0 Available to backorder	Command Pedal Lever Stopper Plate	£5.22 £4.35
10	MO384503015/0 Available to backorder	Blue Drive Pedal	£24.37 £20.31
11	MO384317115/0 Available to backorder	E-C Forward Pedal Lever Er1-2	£25.39 £21.16
