Swift 372e - 2022-2025 - 2T0250481/ST1 - Stiga Ride On Mower Bodywork Diagram

Name: Swift 372e - 2022-2025 - 2T0250481/ST1 - Stiga Ride On Mower Bodywork Diagram
SKU: swift_372e_2t0250481_st1_bodywork-group
Price: 1.26 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

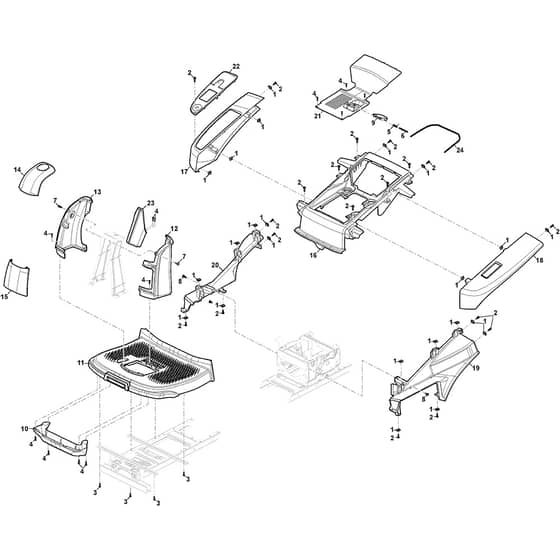

Swift 372e - 2022-2025 - 2T0250481/ST1 - Stiga Ride On Mower Bodywork Diagram

Description

Stiga Swift 372e Parts Diagram

Product Name - Swift 372e

Model Year - 2022-2025

Model Type - R72 LI 48 V2

Art.N - 2T0250481/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112437507/0 Available to backorder	Rapid Fixing Plate	£1.69 £1.41
2	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
3	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
4	MO112728706/0 In stock	Screw	£1.55 £1.29
5	MO125430296/1 Available to backorder	Spring From S.N 22JA3RON001886	£1.51 £1.26
6	MO125510183/0 Available to backorder	Fulcrum Pin	£1.55 £1.29
7	MO125943004/0 Available to backorder	Screw	£1.82 £1.52
8	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
9	MO325207295/0 Available to backorder	Black Charger Socket Cover	£3.67 £3.06
10	MO327110592/0 Available to backorder	Front Slipper Used only on Stiga Models	£15.78 £13.15
11	MO327110593/0 Available to backorder	Footplate	£61.93 £51.61
12	MO327110594/0 Available to backorder	Left Steering Column Cover. Grey	£10.98 £9.15
13	MO327110595/0 Available to backorder	Right Steering Column Cover. Grey	£10.98 £9.15
14	MO327110596/0 Available to backorder	Upper Front Plate. Yellow	£6.62 £5.52
15	MO327110597/0 Available to backorder	Lower Front Plate. Yellow	£6.62 £5.52
16	MO327110598/0 Available to backorder	Central Cover. Grey	£46.46 £38.72
17	MO327110599/1 Available to backorder	Yellow Wheels Cover. Right	£25.56 £21.30
18	MO327110600/1 Available to backorder	Yellow Wheel Cover. Left	£29.56 £24.63
19	MO327110607/0 Available to backorder	Main Body Left Side. Grey	£23.23 £19.36
20	MO327110608/0 Available to backorder	Main Body Right Side. Grey	£23.23 £19.36
21	MO327110609/0 Available to backorder	Central Cover Main Body	£17.10 £14.25
22	MO327120100/0 Available to backorder	Command Panel Holder	£7.03 £5.86
23	MO327206853/0 Available to backorder	Bottle.Cell Phone Holder	£10.07 £8.39
24	MO127285002/0 Available to backorder		£4.56 £3.80
