Sweeper with collector - 2012-2024 - 13-3910-11 - Stiga Front Mower Lawn sweeper Diagram

Description

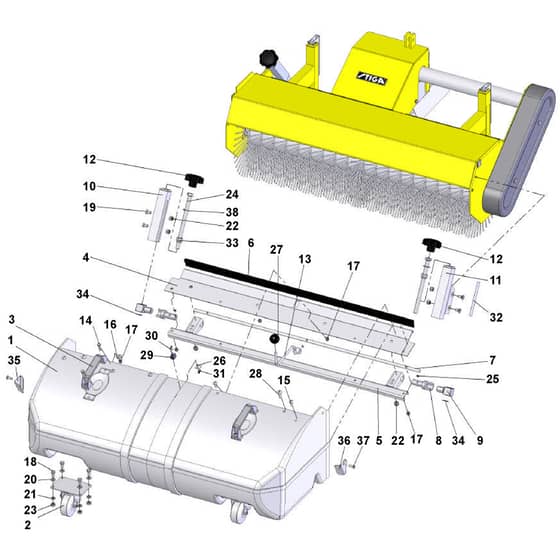

Stiga Sweeper with collector Parts Diagram

Product Name - SWEEPER WITH COLLECTOR

Model Year - 2012-2024

Model Type - FKM 900 KA

Art.N - 13-3910-11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118890103/0 Available to backorder	Guard	£926.57 £772.14
2	MO1319-3564-01 Available to backorder	Support Wheel	£45.13 £37.61
6	MO1319-3536-01 Available to backorder	Rubber Strip	£38.00 £31.67
9	MO1319-3532-01 Available to backorder	Lock Device	£18.31 £15.26
10	MO1319-3534-01 Available to backorder	Guide Tube-Rh	£76.39 £63.66
11	MO1319-3533-01 Available to backorder	Guide Tube-Lh	£76.39 £63.66
12	MO1319-3568-01 Available to backorder	Knob	£3.94 £3.28
14	MO112791500/0 Available to backorder	Screw	£1.49 £1.24
16	MO112523050/0 In stock	Washer	£1.55 £1.29
17	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
18	MO9997-0816-16 Available to backorder	Screw	£1.55 £1.29
20	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
21	MO112583500/0 Available to backorder	Washer	£1.55 £1.29
22	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
23	MO112293200/0 In stock	Nut	£1.55 £1.29
24	MO118890104/0 Available to backorder	Screw	£7.74 £6.45
27	MO9403-0036-70 Available to backorder	Knob	£3.68 £3.07
28	MO112727793/0 Available to backorder	Screw	£1.55 £1.29
31	MO112290791/0 Available to backorder	Nut	£1.55 £1.29
33	MO9747-1231-02 Available to backorder	Nut	£1.78 £1.48
34	MOMX585 Available to backorder	Starlock	£1.14 £0.95
37	MO9948-0616-16 Available to backorder	Screw	£2.12 £1.77
38	MO118890105/0 Available to backorder	Spring Washer	£1.55 £1.29
