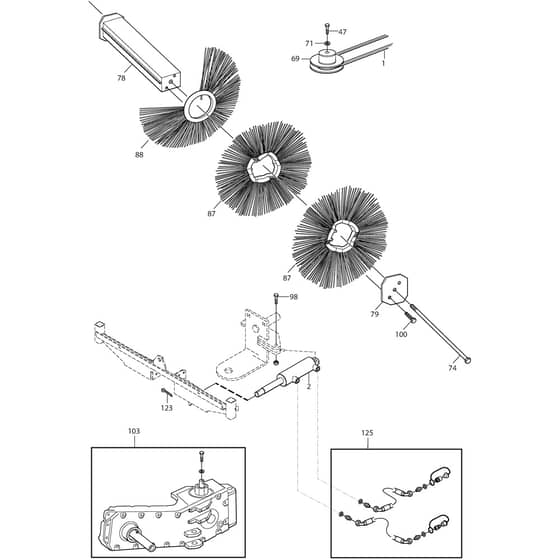

Sweeper Park Hydraulic - 2014-2024 - 13-3929-11 - Stiga Front Mower Transmission Diagram

Description

Stiga Sweeper Park Hydraulic Parts Diagram

Product Name - SWEEPER PARK HYDRAULIC

Model Year - 2014-2024

Model Type - SWR1402H

Art.N - 13-3929-11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details

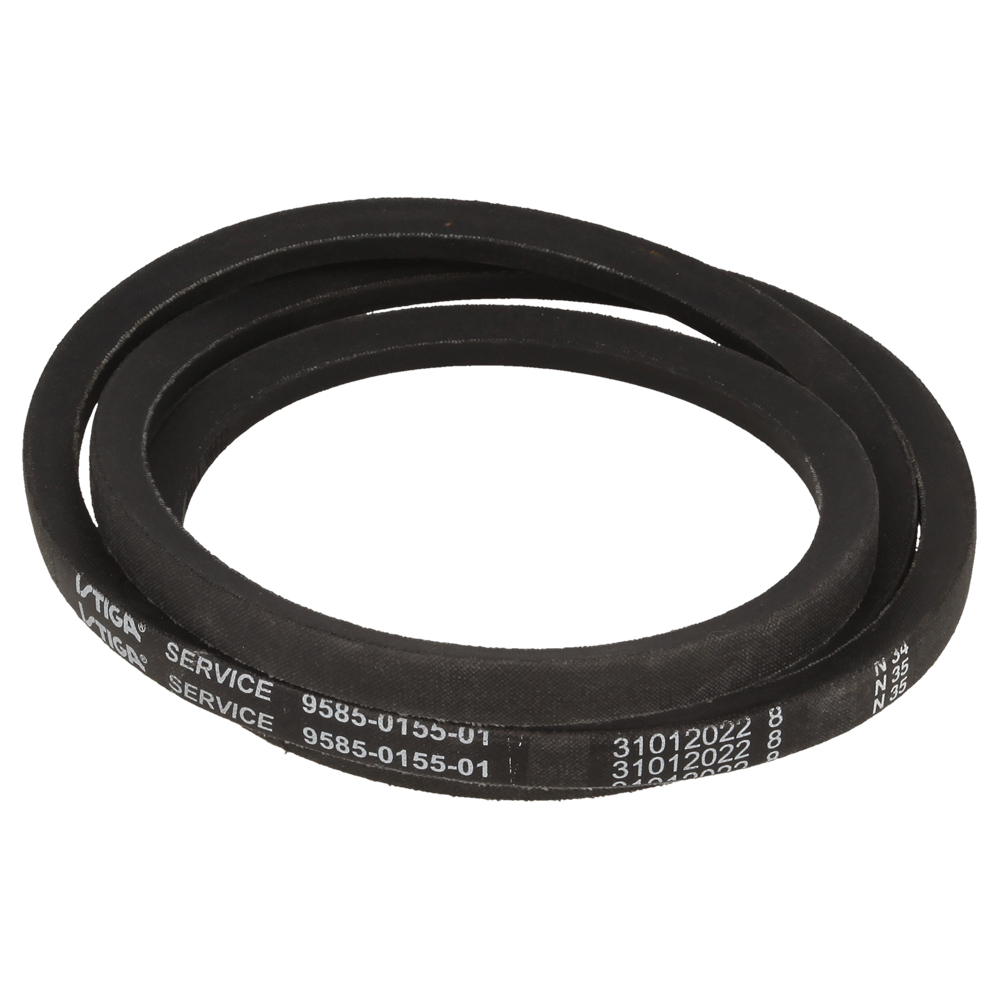

1	MO1134-9101-01 Available to backorder	Drive Belt-Special (107M Hd-4Wd) Service code for Belt. 9585-0155-01	£45.52 £37.93
2	MO1137-0071-01 Available to backorder	Hydraulic Cylinder	£358.98 £299.15
47	MO112793102/0 In stock	Screw	£1.55 £1.29
69	MO1319-1846-01 Available to backorder	Pulley	£86.34 £71.95
71	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
78	MO1319-1825-01 Available to backorder	Brush Shaft	£203.17 £169.31
79	MO1319-2333-01 Available to backorder	Flange	£23.80 £19.83
87	MO118890342/0 In stock	Brush	£26.58 £22.15
88	MO1134-3884-01 Available to backorder	Brush	£15.24 £12.70
98	MO9997-1040-16 Available to backorder	Screw	£6.90 £5.75
100	MO9997-1035-16 Available to backorder	Screw	£3.52 £2.93
103	MO1319-1952-01 Available to backorder	Gear Box Ass.Y	£851.68 £709.73
123	MO9599-0083-02 Available to backorder	Split Pin	£5.20 £4.33
125	MO1319-2339-01 Available to backorder	Hydraulic Hoses Kit	£218.21 £181.84
