Sweeper - 2019-2021 - 2A1120404/S17 - Stiga Front Mower Sweeper Diagram

Name: Sweeper - 2019-2021 - 2A1120404/S17 - Stiga Front Mower Sweeper Diagram
SKU: sweeper_2a1120404_s17_sweeper-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sweeper - 2019-2021 - 2A1120404/S17 - Stiga Front Mower Sweeper Diagram

Description

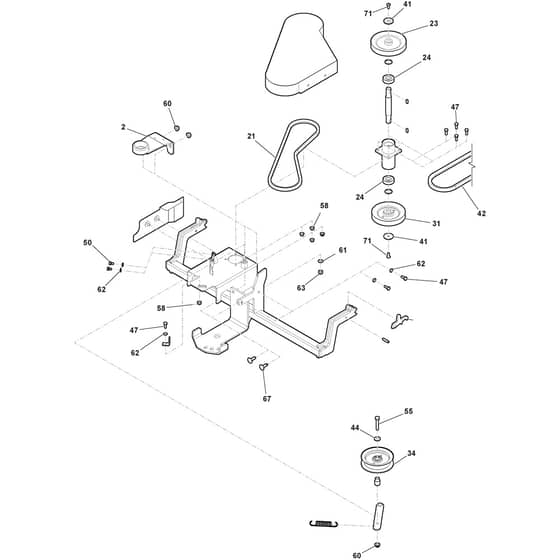

Stiga Sweeper Parts Diagram

Product Name - SWEEPER FOR MPV

Model Year - 2019-2021

Model Type - SWR1603

Art.N - 2A1120404/S17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
2	MO1319-2327-01 Available to backorder	Mounting Frame	£95.74 £79.78
21	MO118890303/0 Available to backorder	V-Belt	£47.12 £39.27
23	MO125601549/0 Available to backorder	Pulley	£50.68 £42.23
24	MO119216047/0 In stock	Ball Bearing	£15.78 £13.15
31	MO125601550/0 Available to backorder	Pulley	£43.49 £36.24
34	MO382601521/0 In stock	Pulley	£50.68 £42.23
41	MO1319-1879-01 Available to backorder	Washer	£21.54 £17.95
42	MO118890304/0 Available to backorder	V-Belt	£64.68 £53.90
47	MO112793102/0 In stock	Screw	£1.55 £1.29
48	MO112691200/0 Available to backorder	Screw	£1.69 £1.41
50	MO9997-0812-16 Available to backorder	Screw	£2.12 £1.77
55	MO112692390/0 Available to backorder	Screw	£1.48 £1.23
58	MO112293201/0 In stock	Nut	£1.69 £1.41
60	MO9739-1031-22 In stock	Nut	£1.97 £1.64
61	MO112521360/0 In stock	Washer	£1.55 £1.29
62	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
63	MO112156602/0 In stock	Lock Nut	£1.40 £1.17
67	MO9997-1030-16 Available to backorder	Screw	£2.68 £2.23
71	MO1319-1883-01 Available to backorder	Screw	£5.33 £4.44
