SWEEPER - 2013-2015 - 13-3918-11 - Stiga Front Mower Sweeper Diagram

Description

Stiga SWEEPER Parts Diagram

Product Name - SWEEPER VILLA & PARK 2+4WD

Model Year - 2013-2015

Model Type - SWEEPER

Art.N - 13-3918-11

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
4	MO1319-2263-01 Available to backorder	Worm Gear (7.1)	£675.71 £563.09
8	MO1319-1539-01 Available to backorder	Bearing	£82.36 £68.63
11	MO1319-2253-01 Available to backorder	Bearing	£9.43 £7.86
16	MO1134-5528-01 Available to backorder	Snap Hook	£4.22 £3.52
18	MO1319-1900-01 Available to backorder	Knob	£7.88 £6.57
21	MO1319-2258-01 Available to backorder	Screw	£4.08 £3.40
35	MO9997-1025-16 Available to backorder	Screw	£1.75 £1.46
36	MO9997-1020-16 Available to backorder	Screw	£2.12 £1.77
37	MO112292102/0 In stock	Nut	£1.69 £1.41
38	MO112523050/0 In stock	Washer	£1.55 £1.29
42	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
43	MO9997-0812-16 Available to backorder	Screw	£2.12 £1.77
45	MO1319-2274-01 Available to backorder	Drive Chain	£103.48 £86.23
47	MO122671651/0 Available to backorder	Washer	£1.97 £1.64
53	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
56	MO9997-0816-16 Available to backorder	Screw	£1.55 £1.29
57	MO112793102/0 In stock	Screw	£1.55 £1.29

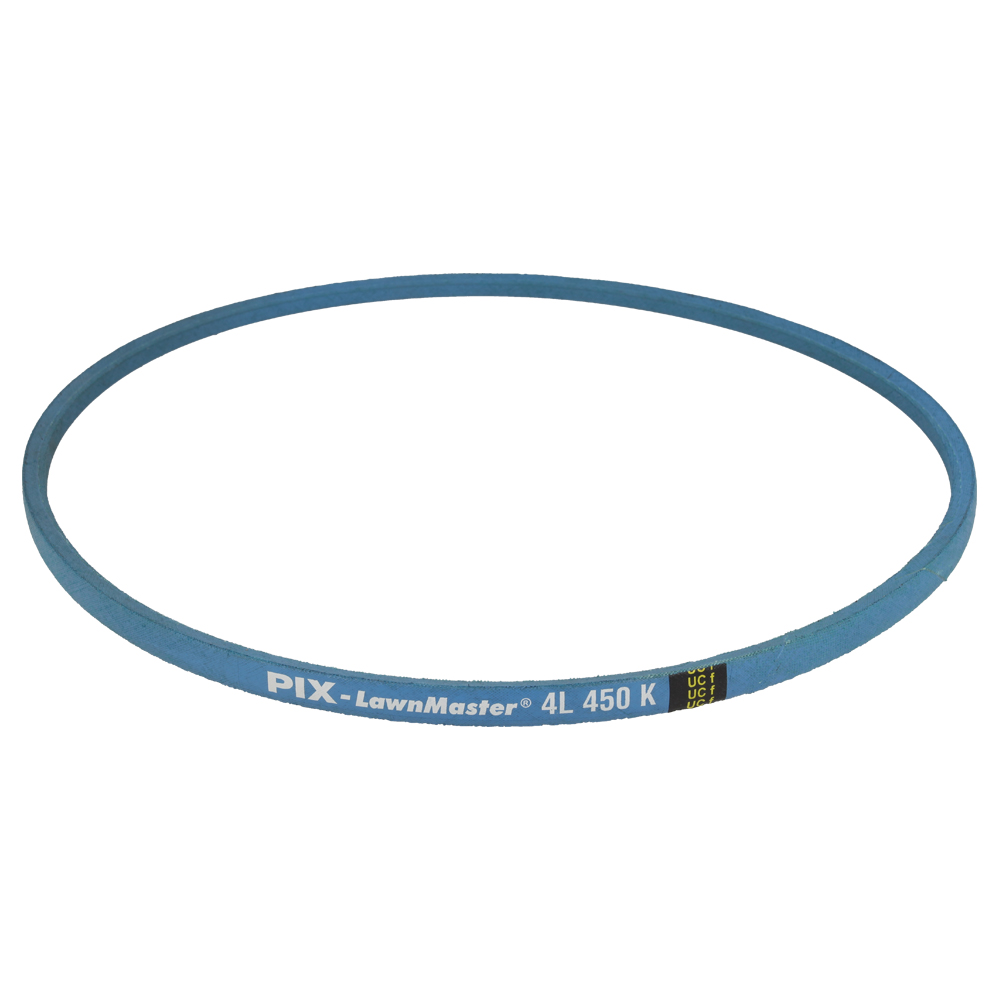

58	1011 In stock	V-Belt Replaced by Service Code. 1134-9009-01	£25.24 £21.03
58	MO1134-9009-01 Available to backorder	V-Belt Service code for belt. 9585-0052-00	£28.28 £23.57
61	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
65	MO112293201/0 In stock	Nut	£1.69 £1.41
67	MO9585-0210-01 Available to backorder	V-Belt Park 4WD	£44.17 £36.81
68	MO9585-0211-01 Available to backorder	V-Belt Park 2WD	£53.87 £44.89
