SV40 - 2011 - 118550157/1_100001SV40 - Stiga Engine Engine 02 Diagram

Name: SV40 - 2011 - 118550157/1_100001SV40 - Stiga Engine Engine 02 Diagram
SKU: sv40_118550157_1_100001sv40_engine_02-group
Price: 5.17 GBP
Availability: InStock

Part No. sv40_118550157_1_100001sv40_engine_02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SV40 - 2011 - 118550157/1_100001SV40 - Stiga Engine Engine 02 Diagram

Description

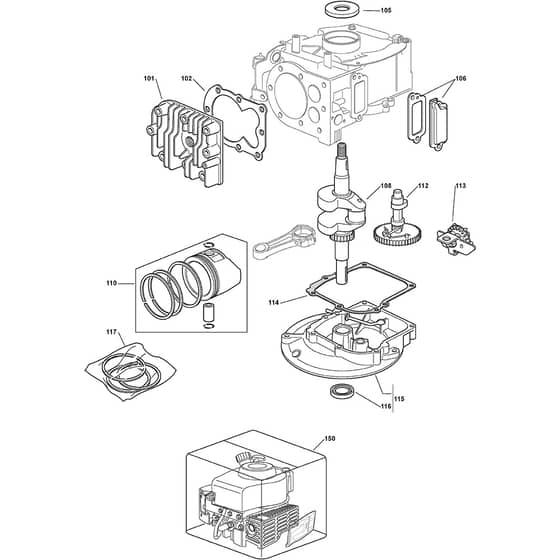

Stiga SV40 Parts Diagram

Product Name - SV40

Model Year - 2011

Model Type - SV150M

Art.N - 118550157/1_100001SV40

Engine Model -

	Part No.	Details
1	MO118550360/0 Available to backorder	Cylinder Head Assy	£18.66 £15.55
102	MO118550359/0 Available to backorder	Cylinder Head Gasket Set	£6.20 £5.17
106	MO118550364/0 Available to backorder	Gasket Assy	£8.22 £6.85
108	MO118550361/0 Available to backorder	Crankshaft	£58.69 £48.91
112	MO118550356/0 Available to backorder	Camshaft Assy	£21.95 £18.29
114	MO118550130/0 Available to backorder	Crankcase Gasket	£6.32 £5.27
116	MO118550131/0 Available to backorder	Seal Ring	£8.74 £7.28
117	MO118550357/0 Available to backorder	Piston. Ring Set	£45.14 £37.62
150	MO118550157/1 Available to backorder	Engine C.W Cat Muffler 150Cc [M150]	£422.32 £351.93
