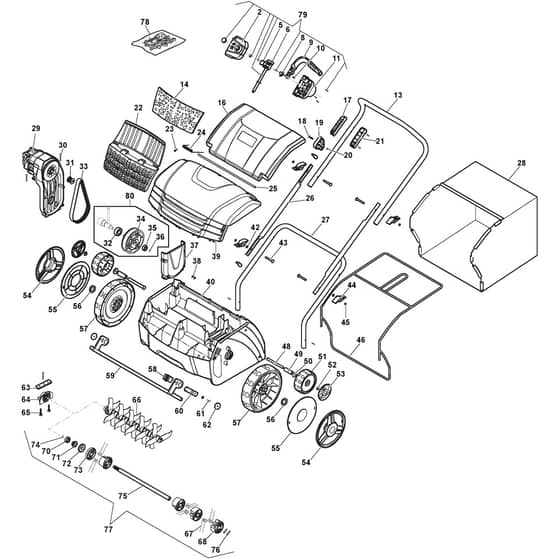

SV 213 E - 2014-2025 - 290002132/14 - Stiga Scarifier Scarifier Diagram

Name: SV 213 E - 2014-2025 - 290002132/14 - Stiga Scarifier Scarifier Diagram
SKU: sv_213_e_290002132_14_scarifier-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SV 213 E - 2014-2025 - 290002132/14 - Stiga Scarifier Scarifier Diagram

Description

Stiga SV 213 E Parts Diagram

Product Name - SV 213 E

Model Year - 2014-2025

Model Type - SV 213 E

Art.N - 290002132/14

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
6	MO118810065/0 Available to backorder	Capacitor	£2.81 £2.34
13	MO118802711/0 Available to backorder	Upper Handle	£36.59 £30.49
16	MO118802939/0 Available to backorder	Stone-Guard. Grey	£21.32 £17.77
17	MO118810087/0 Available to backorder	Upper Fixation Plate	£2.12 £1.77
18	MO9943-0516-16 In stock	Screw	£1.22 £1.02
19	MO118810083/0 Available to backorder	Hook	£4.08 £3.40
20	MO112154330/0 In stock	Nut	£1.55 £1.29
22	MO118802938/0 Available to backorder	Cover. Grey	£11.27 £9.39
26	MO118802710/0 Available to backorder	Handle Middle Part	£100.38 £83.65
28	MO118802901/0 Available to backorder	Grass-Box	£91.72 £76.43
29	MO118802682/0 Available to backorder	Electric Motor 1300W	£115.43 £96.19
30	MO118810099/0 Available to backorder	Screw	£2.53 £2.11
31	MO118802712/0 Available to backorder	Motor Pulley	£12.11 £10.09
32	MO118802907/0 Available to backorder	Bearing	£13.09 £10.91
33	MO118802681/0 Available to backorder	Belt	£16.22 £13.52

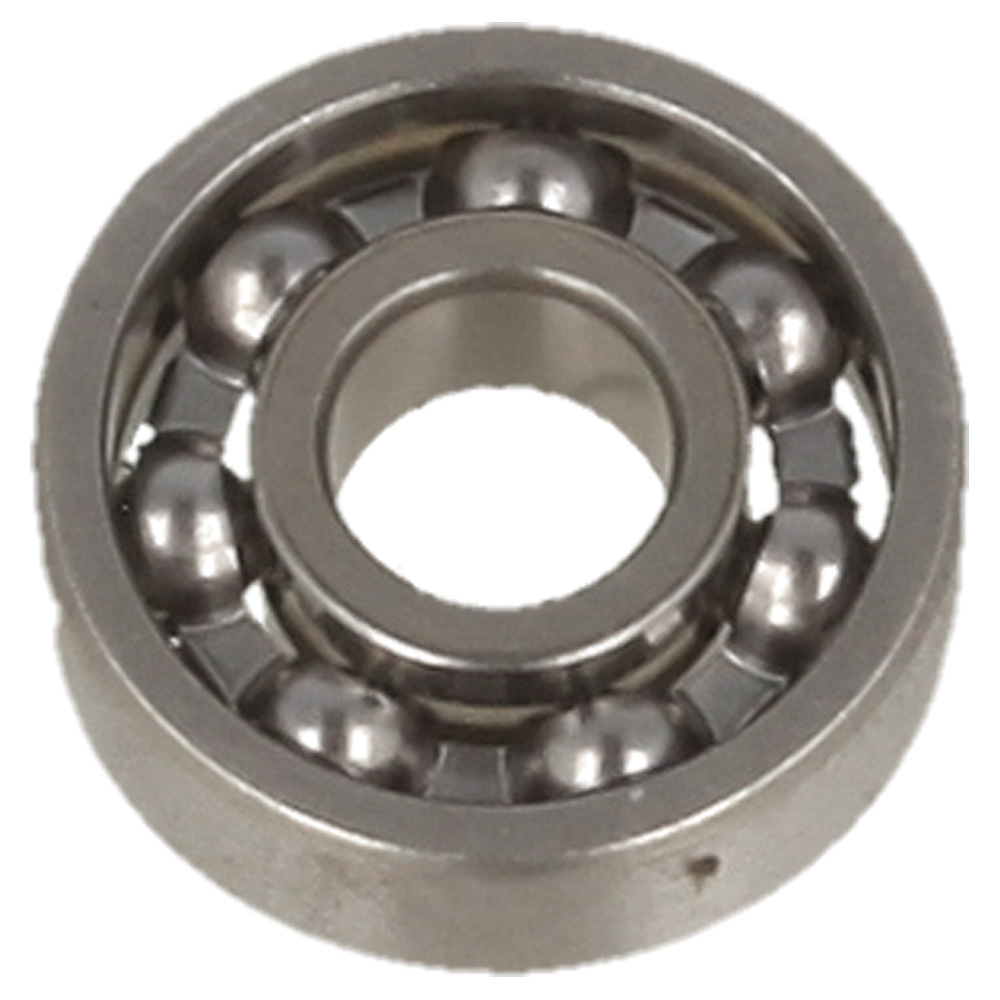

35	MO3112230 Available to backorder	Ball Bearing	£4.93 £4.11
36	MO3353020 Available to backorder	Seeger Ring	£1.40 £1.17
37	MO118802671/0 Available to backorder	Engine Cover	£10.56 £8.80
38	MO118801615/0 Available to backorder	Wire Connector	£1.33 £1.11
39	MO118802933/0 Available to backorder	Cover. Yellow	£32.38 £26.98
42	MO2312150 Available to backorder	Washer	£1.33 £1.11
43	MO112689500/0 Available to backorder	Screw	£1.55 £1.29
44	MO118802953/0 Available to backorder	Knob	£4.93 £4.11
45	MO112292100/0 Available to backorder	Nut	£1.40 £1.17
46	MO118802704/0 Available to backorder	Stiffening	£54.61 £45.51
48	MO118802695/0 Available to backorder	Rear Axle	£3.79 £3.16
49	MO118802713/0 Available to backorder	Sleeve	£5.35 £4.46
50	MO122671651/0 Available to backorder	Washer	£1.97 £1.64
51	MO118802668/0 Available to backorder	Rear Wheel	£5.64 £4.70
52	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
53	MO118802936/0 Available to backorder	Hub Cap Grey	£2.40 £2.00
54	MO118802934/0 Available to backorder	Hub Cap Grey	£6.47 £5.39
56	MO112604903/0 In stock	Washer	£1.55 £1.29
57	MO118802666/0 Available to backorder	Front Wheel	£21.54 £17.95
58	MO118802922/0 Available to backorder	Adjust. Handle	£1.82 £1.52
59	MO118802696/0 Available to backorder	Front Wheel Axle	£24.22 £20.18
60	MO118802717/0 Available to backorder	Lever. Height Adjustment	£2.40 £2.00
61	MO112726388/0 Available to backorder	Screw	£1.55 £1.29
62	MO118805078/0 Available to backorder	Washer	£1.82 £1.52
63	MO118802718/0 Available to backorder	Fixing Plate	£4.22 £3.52
64	MO118802665/0 Available to backorder	Bearing	£6.47 £5.39
65	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
66	MO118802309/0 Available to backorder	Blade	£63.29 £52.74

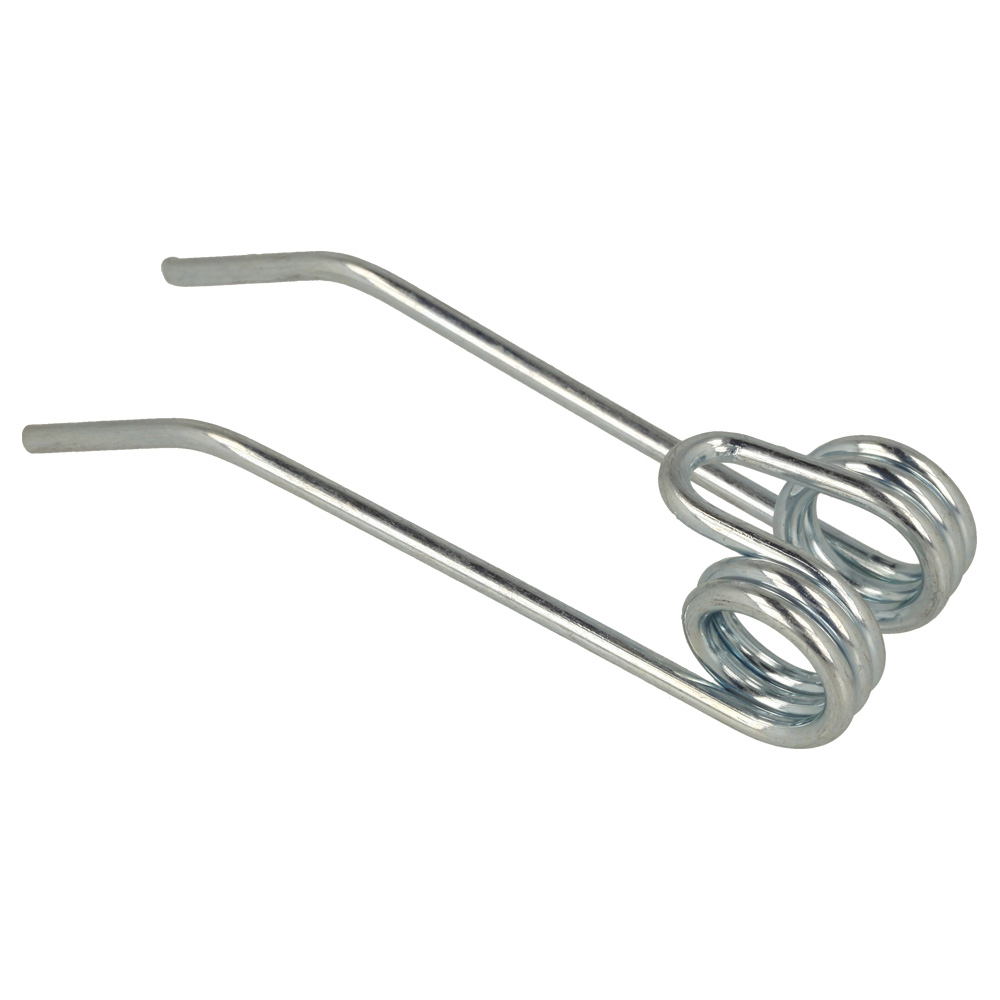

67	MO118802646/0 Available to backorder	Spring	£1.82 £1.52
68	MO118802680/0 Available to backorder	Fixation Block	£17.17 £14.31
70	MO118802906/0 Available to backorder	Bearing	£12.53 £10.44
71	MO118802904/0 Available to backorder	Nut	£2.95 £2.46
72	MO118802694/0 Available to backorder	Washer	£2.26 £1.88
73	MO118802675/0 Available to backorder	Cover	£1.69 £1.41
74	MO112000957/0 Available to backorder	Circlip Ø10	£1.55 £1.29
75	MO118802720/0 Available to backorder	Axle	£19.57 £16.31
77	MO118810266/0 Available to backorder	Rotor Scarifier Assy	£68.99 £57.49
78	MO118810268/0 Available to backorder	Screws Pocket	£32.38 £26.98

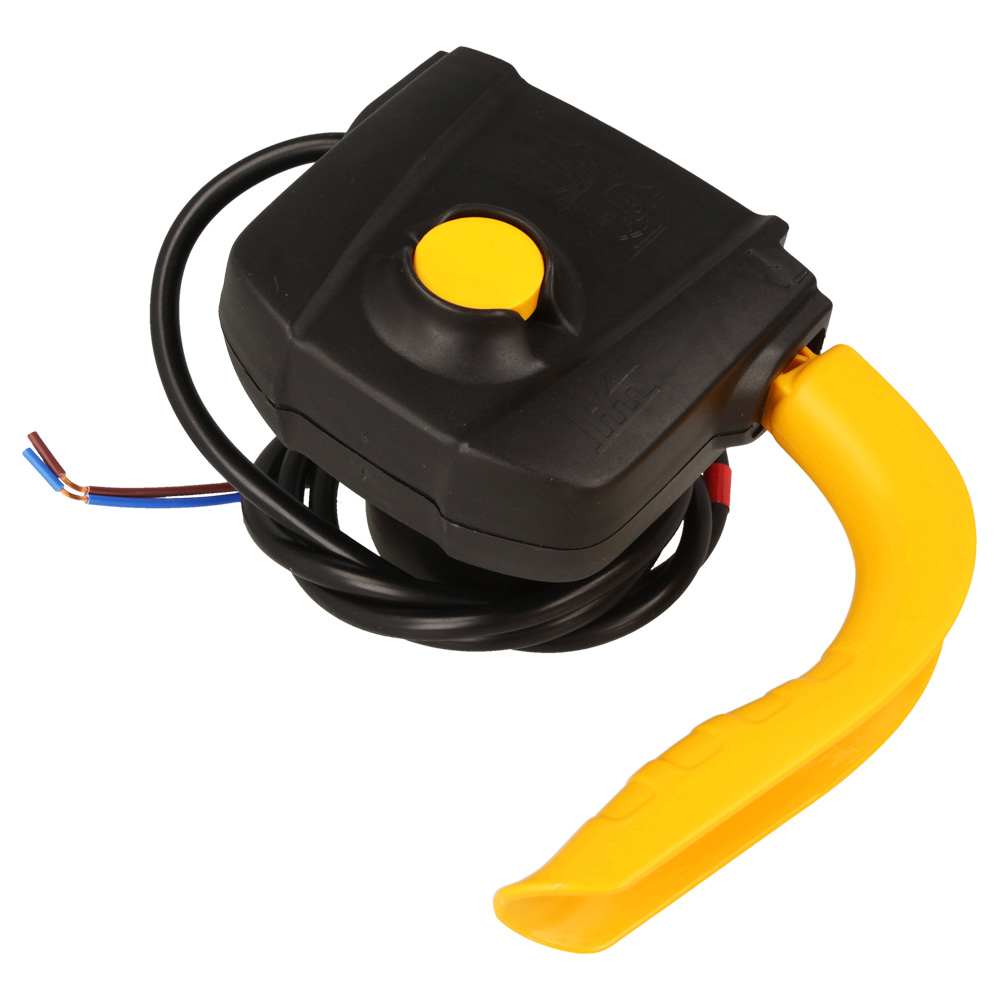

79	MO118804674/0 Available to backorder	Dead Hand Switch Assy	£39.42 £32.85
80	MO118806492/0 Available to backorder	Pulley Assy	£25.74 £21.45
