Toro Super Recycler C53AST 53cm - 21693 (400000000 - 410999999) Rear Wheel and Height-of-Cut

Name: Toro Super Recycler C53AST 53cm - 21693 (400000000 - 410999999) Rear Wheel and Height-of-Cut
SKU: super_recycler_c53ast_53cm_21693_441999999_rear_wheelheight_of_c
Price: 0.91 GBP
Availability: InStock

Part No. super_recycler_c53ast_53cm_21693_441999999_rear_wheelheight_of_c

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Super Recycler C53AST 53cm - 21693 (400000000 - 410999999) Rear Wheel and Height-of-Cut

Description

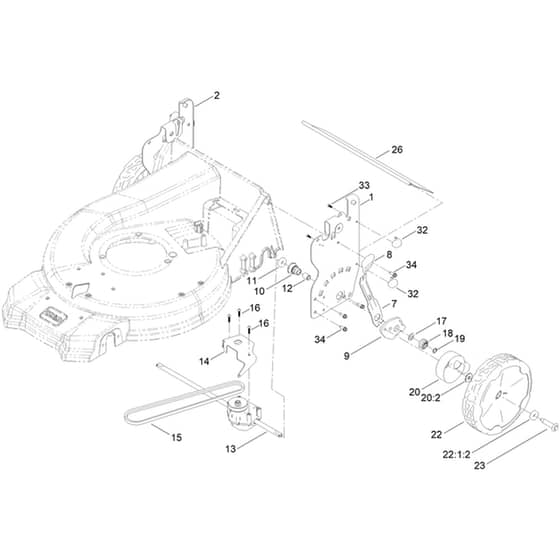

Toro Super Recycler C53AST 53cm - 21693 (400000000 - 410999999) Rear Wheel and Height-of-Cut Parts Diagram

	Part No.	Details
1	HA144-6477-05 Available to backorder	Plate-Hoc. Lh [Blk-Txt]	£28.45 £23.71
2	HA139-6592-05 Available to backorder	Right Hand (Rh) Height Of Cut (Hoc) Plate (2 Hole)	£28.45 £23.71
7	HA132-4486 Available to backorder	Spring Arm	£17.32 £14.43
8	HA110-0549 In stock	Height Of Cut (Hoc) Knob	£1.27 £1.06
9	HA139-5451 Available to backorder	Rear Pivot Arm	£14.83 £12.36
10	HA108-9779 Available to backorder	Height Of Cut (Hoc) Retainer Bushing	£16.08 £13.40
11	HA52-2450 In stock	Wheel Bearing	Was £23.06 £19.22 Special Price £14.92 £12.43
12	HA108-9782 Available to backorder	Sleeve Bushing	£4.08 £3.40
13	HA144-0248 Available to backorder	Transmission-Rwd. 5.25.1	£134.04 £111.70
15	HA115-4669 In stock	V-Belt For Walk Mower	£21.79 £18.16
17	HA110-7191 Available to backorder	Thrust Washer	£2.98 £2.48
18	HA131-5399 In stock	Pinion Gear	£6.25 £5.21
19	HA32151-61 Available to backorder	Retaining Ring	£3.07 £2.56
20	HA144-0240 Available to backorder	Asm-Cover. Gear	£7.78 £6.48
20	HA614426 Available to backorder	[20.2] Stepped Washer	£4.14 £3.45
22	HA144-6474 Available to backorder	Asm-9.65" Wheel. Geared	£59.89 £49.91
23	HA145-3899 Available to backorder	Wheel Bolt	£1.97 £1.64
26	HA145-5821 In stock	Trailing Shield	£27.56 £22.97
32	HA140-2369 Available to backorder	Smart Stow Pad	£1.09 £0.91
34	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.56 £2.13
33	HA137-9137 Available to backorder	Phillips Pan Head (Pph) Screw	£1.09 £0.91
