Toro Super Recycler C53AST 53cm - 21693 (400000000 - 410999999) Deck

Description

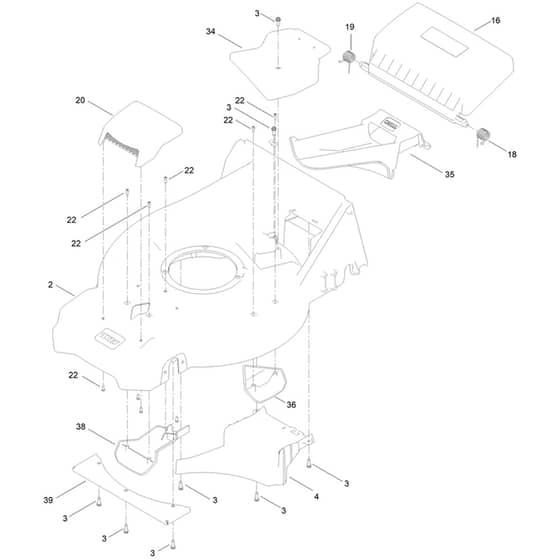

Toro Super Recycler C53AST 53cm - 21693 (400000000 - 410999999) Deck Parts Diagram

	Part No.	Details
2	HA144-6460-01 Available to backorder	Deck-Cast. 21" [Red]	£347.52 £289.60
3	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.56 £2.13
4	HA144-0233 Available to backorder	Ramp-Discharge	£18.56 £15.47
16	HA139-5476 Available to backorder	Rear Door Assembly	£24.74 £20.62
18	HA139-5478 Available to backorder	Left Hand (Lh) Torsion Spring	£1.84 £1.53
19	HA139-5479 Available to backorder	Right Hand Torsion Spring	£1.84 £1.53
20	HA144-6531 Available to backorder	Asm-Cover. Top Intake	£12.35 £10.29
22	HA139-1703 Available to backorder	Phillips Pan Head (Pph) Plastic Screw	£0.48 £0.40
34	HA144-0234 Available to backorder	Cover-Belt. Top	£12.35 £10.29
35	HA144-0236 Available to backorder	Mulch Plug	£18.56 £15.47
36	HA144-0237 Available to backorder	Kicker-Housing	£5.66 £4.72
38	HA144-6464 Available to backorder	Cover-Intake. Bottom	£6.66 £5.55
39	HA144-0235-03 Available to backorder	Plate-Cover. Ce [Black]	£23.29 £19.41
