Toro Super Recycler C53AST 53cm - 21693 (414500000 - 414899999) Rear Wheel and Height-of-Cut

Name: Toro Super Recycler C53AST 53cm - 21693 (414500000 - 414899999) Rear Wheel and Height-of-Cut
SKU: super_recycler_c53ast_53cm_21693_4145414899999_rear_wheelheight_
Price: 0.2 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro Super Recycler C53AST 53cm - 21693 (414500000 - 414899999) Rear Wheel and Height-of-Cut

Description

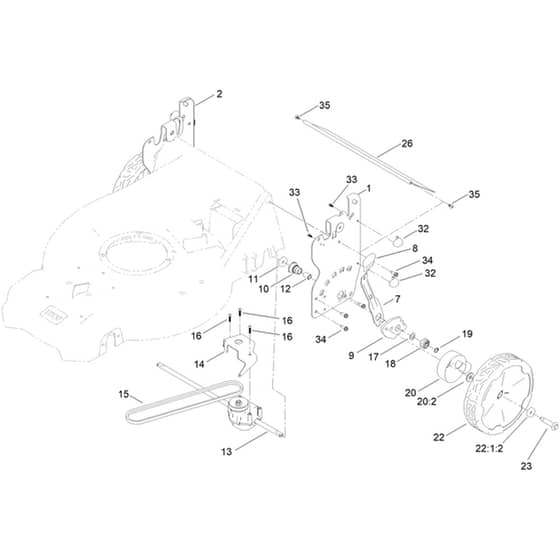

Toro Super Recycler C53AST 53cm - 21693 (414500000 - 414899999) Rear Wheel and Height-of-Cut Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HA144-6477-05 Available to backorder	Plate-Hoc. Lh [Blk-Txt]	£27.50 £22.92
2	HA139-6592-05 Available to backorder	Right Hand (Rh) Height Of Cut (Hoc) Plate (2 Hole)	£27.50 £22.92
7	HA132-4486 Available to backorder	Spring Arm	£16.74 £13.95
8	HA110-0549 In stock	Height Of Cut (Hoc) Knob	£1.18 £0.98
9	HA139-5451 Available to backorder	Rear Pivot Arm	£14.34 £11.95
10	HA108-9779 Available to backorder	Height Of Cut (Hoc) Retainer Bushing	£15.54 £12.95
11	HA52-2450 In stock	Wheel Bearing	£21.52 £17.93
12	HA108-9782 Available to backorder	Sleeve Bushing	£3.94 £3.28
13	HA144-0248 Available to backorder	Transmission-Rwd. 5.25.1	£134.00 £111.67
15	HA115-4669 In stock	V-Belt For Walk Mower	£19.32 £16.10
17	HA110-7191 Available to backorder	Thrust Washer	£2.82 £2.35
18	HA131-5399 Available to backorder	Pinion Gear	£5.74 £4.78
19	HA32151-61 Available to backorder	Retaining Ring	£2.86 £2.38
20	HA144-0240 Available to backorder	Asm-Cover. Gear	£7.52 £6.27
20	HA614426 Available to backorder	[20.2] Stepped Washer	£3.86 £3.22
22	HA144-6474 Available to backorder	Asm-9.65" Wheel. Geared	£57.90 £48.25
23	HA614650 Available to backorder	Shoulder Bolt	£4.78 £3.98
26	HA145-5821 Available to backorder	Trailing Shield	£25.72 £21.43
32	HA140-2369 Available to backorder	Smart Stow Pad	£1.27 £1.06
33	HA137-9137 Available to backorder	Phillips Pan Head (Pph) Screw	£1.27 £1.06
34	HA49-2040 In stock	Hex Washer Head Thread Forming (Hwhtf) Screw	£2.38 £1.98
35	HA139-1692 In stock	Screw-Pth[#12 X 1.2.Ab Thd.Bz]	Was £0.55 £0.46 Special Price £0.24 £0.20
